CLM3A-GKW-CVAWA793

Overview

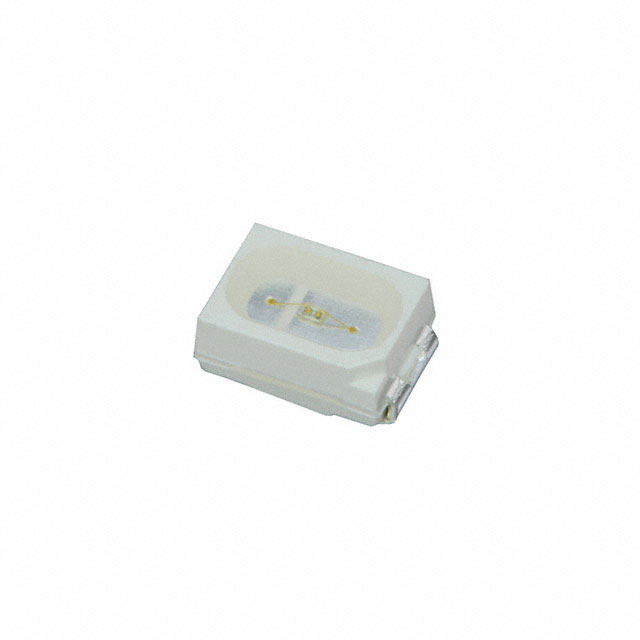

The CLM3A-GKW-CVAWA793 is a single-color green LED from Cree LED, designed for surface-mount applications. It features a clear, colorless lens with a rectangular flat-top style. The component operates at a forward current of 20mA and has a typical forward voltage of 3.4V. It emits light at a wavelength of 528nm with a luminous intensity of 1055mcd. The package dimensions are 2.70mm in length, 2.00mm in width, and a maximum height of 1.50mm.

Feature Summary

• Surface-mount design with J-leads for automated assembly
• Clear non-diffused lens for focused illumination
• Standard configuration for discrete indication

Applications

• Panel indicator lights
• Status signaling in electronic devices
• General-purpose visual indication

Procurement Notes

Verify the specific ordering suffix to ensure correct binning and optical characteristics. Confirm moisture sensitivity level (MSL) handling requirements during storage and reflow soldering processes. Check RoHS compliance status against current regulatory standards before integration into final products.

Selection Notes

Select this component when a standard green indication is required with moderate luminous intensity. Ensure the PCB footprint matches the 2-PLCC package dimensions. Consider the forward voltage drop for circuit design calculations. Verify thermal management capabilities if operating near maximum ratings.

Part Context

This part belongs to the CLM3A series of high-brightness LEDs. It shares the same physical package and electrical interface as other variants in the family, differing primarily in wavelength and intensity. The series is optimized for cost-effective system designs in consumer and industrial electronics.

Replacement Considerations

Direct substitutes include CLM3A-GKW-CWAXA793, which offers higher luminous intensity (1680mcd) but similar electrical characteristics. Cross-reference pinout and mechanical dimensions to ensure compatibility with existing footprints.
