CLM3C-AKW-CUBVA353

Overview

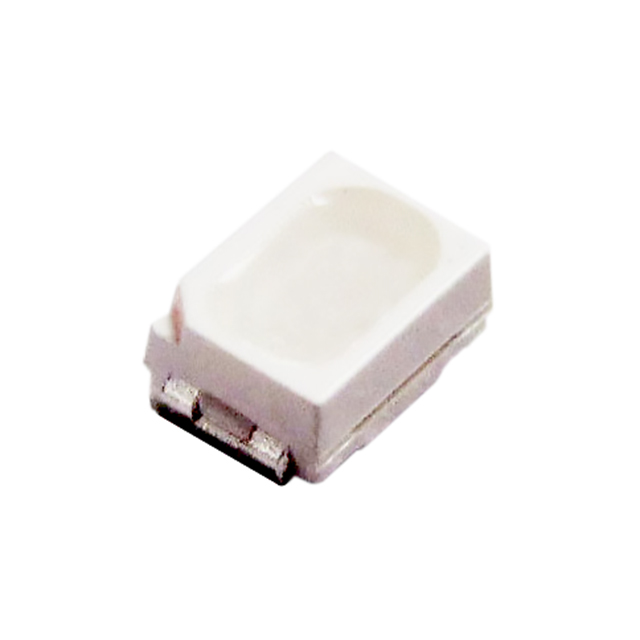

The CLM3C-AKW-CUBVA353 is a single-color amber surface-mount LED from Cree LED, designed for indicator applications. It features a clear lens with a rectangular shape and flat top, emitting at a dominant wavelength of 591nm. The component operates with a typical forward voltage of 2.1V at a test current of 20mA. It provides a luminous intensity of 730mcd. The package is a standard 2-PLCC with J-leads, measuring 2.70mm in length, 2.00mm in width, and having a maximum height of 1.40mm.

Feature Summary

• Amber emission with a dominant wavelength of 591nm
• Clear lens design for direct visibility
• Standard 2-PLCC SMD package configuration

Applications

• Panel status indicators
• Control interface lighting
• Equipment signal indication

Procurement Notes

Verify the specific suffix CUBVA353 to ensure compatibility with required binning and optical characteristics. Confirm RoHS3 compliance and MSL level 5A handling requirements during storage and assembly processes. Cross-reference datasheet revisions to account for any recent packaging or material changes documented in PCNs.

Selection Notes

Select this component when a clear amber indicator is required in a compact 2.70mm x 2.00mm footprint. Consider the 2.1V forward voltage drop for circuit design. Compare against diffused variants if light distribution uniformity is prioritized over raw intensity clarity.

Part Context

This part belongs to the CLM3C series of high-reliability SMD LEDs from Cree LED. The series is engineered for consistent performance under various environmental conditions. The 2-PLCC form factor ensures compatibility with standard pick-and-place equipment and PCB layouts common in consumer and industrial electronics.

Replacement Considerations

CLM3C-AKW-CWBYA353 (Diffused variant)

FAQ

What is the lens transparency type?

The lens is transparent (clear).

What is the recommended test current?

The standard test current is 20mA.
