CLM3C-MKW-CWAXB133

Overview

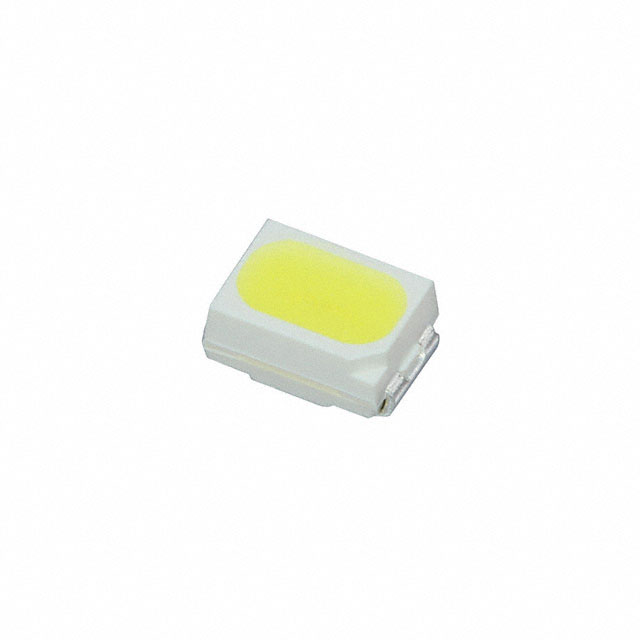

The CLM3C-MKW-CWAXB133 is a warm white surface-mount LED from Cree LED, packaged in a standard PLCC-2 (2-SMD, J-leaded) form factor. It operates with a typical forward voltage of 3.2V at a test current of 20mA. The component emits light at a correlated color temperature of 3500K, providing a neutral-to-warm white appearance. It features a rectangular lens with a 120-degree viewing angle and delivers a luminous intensity of 1.12 candela. The physical dimensions are 2.7mm in length, 2.0mm in width, and 1.3mm in maximum height.

Feature Summary

• Standard PLCC-2 package design for widespread compatibility
• High reliability performance suitable for diverse environmental conditions
• Rectangular lens shape with a wide 120-degree viewing angle

Applications

• General illumination lighting fixtures
• Indicator lights in electronic devices
• Backlighting applications requiring neutral white tones

Procurement Notes

Verify the specific ordering suffix to confirm the exact color temperature and binning requirements, as variations exist within the CLM3C series. Ensure that the procurement channel provides valid manufacturer documentation or traceability records. Cross-reference the part number against official Cree LED databases to confirm current production status and availability before finalizing orders.

Selection Notes

Select this component when a standard PLCC-2 footprint is required for space-constrained designs. Consider the 3500K color temperature for applications needing a warmer tone than cool white but less yellow than traditional warm white. Verify that the 3.2V forward voltage aligns with the system's power supply constraints and drive circuitry capabilities.

Part Context

This part belongs to the CLM3C family of single-color SMD LEDs manufactured by Cree LED. These components are designed for high reliability and are commonly used in indicator and general lighting applications. The PLCC-2 package is an industry-standard form factor that facilitates automated assembly processes.

Replacement Considerations

CLM3C-MKW-CWAXB513 and CLM3C-MKW-CWBXB513 are documented parameter-equivalent alternatives available from the same manufacturer.
