CLM3C-RKW-CUBVAAA3

Overview

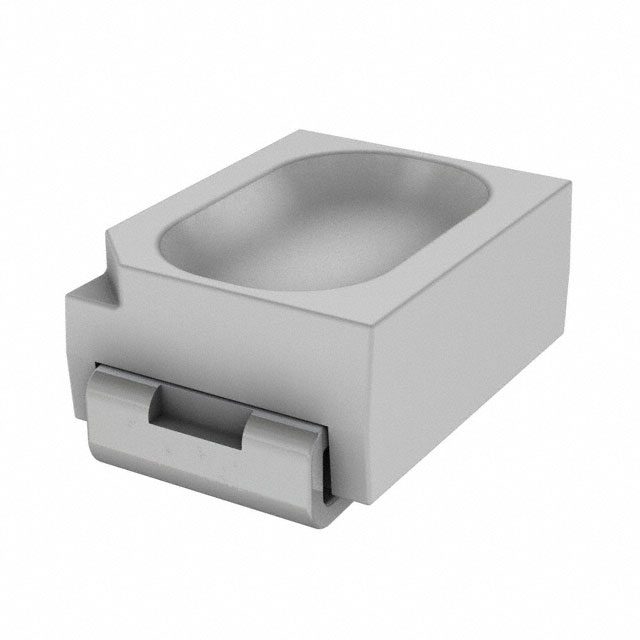

The CLM3C-RKW-CUBVAAA3 is a red surface-mount LED from Cree LED, housed in a 2-PLCC package with J-leads. It features a diffused white lens and emits at a peak wavelength of 624nm. The typical forward voltage is 2.1V at a test current of 20mA. The component measures 2.70mm in length, 2.00mm in width, and has a maximum height of 1.40mm. It provides an intensity of 740mcd and operates within a temperature range of -40°C to +85°C.

Feature Summary

• Utilizes a rectangular lens with a flat top design for controlled light distribution.
• Features a diffused lens coating to reduce glare and enhance visibility.
• Constructed with J-shaped leads for secure surface mount attachment.

Applications

• Panel status indicators
• Instrumentation displays
• Control interface lighting

Procurement Notes

Verify the specific suffix against official datasheets to confirm optical and electrical characteristics. Ensure compatibility with RoHS3 and REACH regulations as specified by the manufacturer. Confirm moisture sensitivity level (MSL 5A) requirements for storage and handling procedures prior to assembly.

Selection Notes

Select this component for applications requiring a standard red indicator with moderate brightness. The 2-PLCC form factor allows for compact PCB layouts. Consider the 2.1V forward voltage drop when designing drive circuits. Verify thermal management needs based on the 100mW power rating.

Part Context

This part belongs to the CLM3C series of high-brightness LEDs. The series offers various color options and lens styles. The CLM3C platform is designed for general-purpose indication tasks where reliability and consistent performance are required.

Replacement Considerations

Consult official substitution lists for compatible parts. Cross-reference specifications such as wavelength, forward voltage, and package dimensions to ensure functional equivalence.
