Product Detailed Parameters
- Description：LED COOL WHITE DIFF 2PLCC SMD
- Series：-
- Mfr：Cree LED
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：White, Cool
- Configuration：Standard
- Lens Color：Yellow
- Lens Transparency：Diffused
- Millicandela Rating：2475mcd
- Lens Style：Rectangle with Flat Top
- Lens Size：-
- Voltage - Forward (Vf) (Typ)：3.2V
- Current - Test：20mA
- Viewing Angle：-
- Mounting Type：Surface Mount
- Wavelength - Dominant：5500K
- Wavelength - Peak：-
- Features：-
- Package / Case：2-SMD, J-Lead
- Supplier Device Package：2-PLCC
- Size / Dimension：2.70mm L x 2.00mm W
- Height (Max)：1.40mm
- Grade：-
- Qualification：-
Download product information
Overview

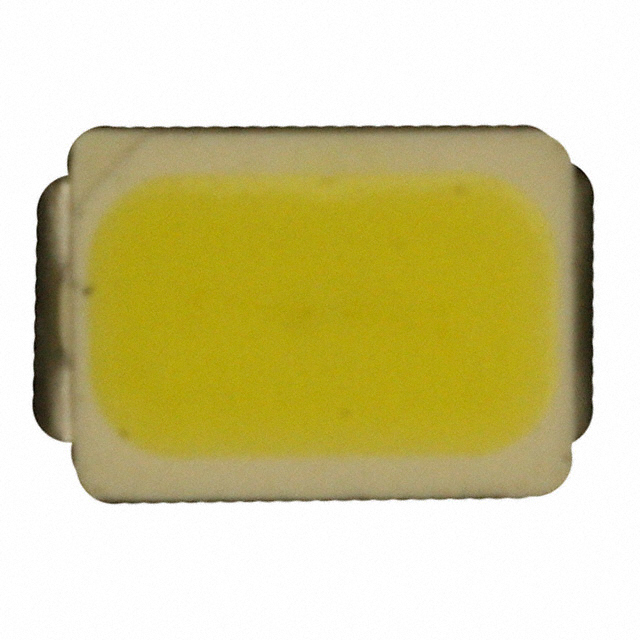

The CLM3C-WKW-CWBYA453 is a cool white surface-mount LED from Cree LED, housed in a 2-PLCC package with J-leads. It operates at a forward voltage of 3.2V and a test current of 20mA. The component emits light at a color temperature of 5500K with a viewing angle of 120 degrees. Physical dimensions are 2.70mm in length, 2.00mm in width, and a maximum height of 1.40mm. It features a yellow, diffused rectangular lens with a flat top design. The device has a power rating of 100mW and meets RoHS3 standards.
Feature Summary
- Emits cool white light with a 5500K color temperature for neutral illumination applications.
- Features a diffused yellow lens to provide a wide 120-degree viewing angle.
- Constructed in a compact 2-PLCC SMD package suitable for space-constrained designs.
Applications
- General indicator lighting in electronic devices
- Backlighting for displays and interfaces
- Status indication in consumer electronics
Procurement Notes
Verify the specific bin code suffix 'CWBYA453' against the manufacturer's datasheet to ensure correct chromaticity and intensity grouping. Confirm that the 2-PLCC package dimensions align with the PCB footprint requirements. Check moisture sensitivity level (MSL 5A) handling procedures during assembly to prevent package damage.
Selection Notes
Select this component when a standard cool white indicator is required in a small form factor. The 3.2V forward voltage is compatible with common logic-level drive circuits. Ensure the application does not require higher luminous intensity than provided by this specific brightness bin. Consider the 120-degree viewing angle for visibility requirements.
Part Context
This part belongs to the CLM3C series of high-brightness LEDs from Cree LED. The series offers various color temperatures and intensities within the same 2-PLCC footprint. The CLM3C-WKW variant specifically targets cool white applications. The series is designed for automated surface-mount assembly processes.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference with other Cree LED CLM3C-WKW variants if different intensity bins are needed, ensuring identical package dimensions.
