CLMVB-FKA-CFHEHLCBB7A363

Overview

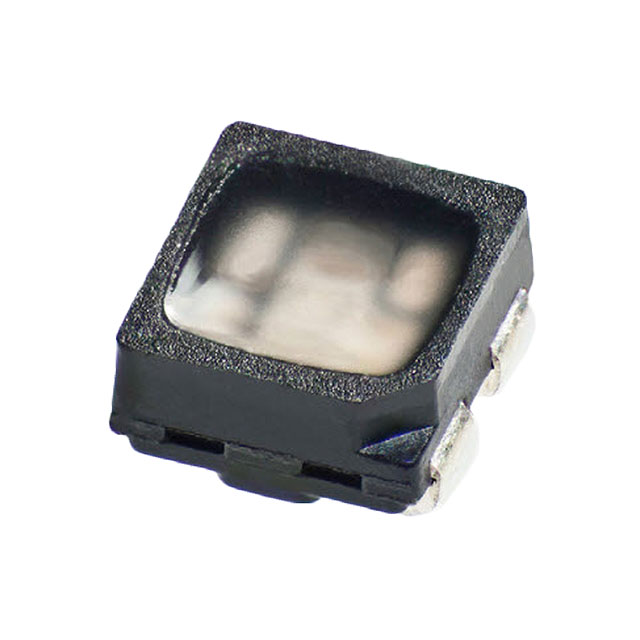

The CLMVB-FKA-CFHEHLCBB7A363 is a surface-mount RGB LED from Cree LED, featuring a 4-PLCC package with dimensions of 3.20mm length, 2.80mm width, and a maximum height of 2.10mm. It emits red light at 617nm (337mcd), green at 530nm (315mcd), and blue at 470nm (98mcd). Forward voltages are 2V for red and 3.4V for both green and blue channels. The component offers a 120-degree viewing angle and utilizes a square lens with a flat top design.

Feature Summary

• Integrates red, green, and blue emitters into a single compact SMD package for full-color generation
• Provides a wide 120-degree viewing angle to ensure broad visibility of status indicators
• Features a diffused lens design to create uniform illumination without harsh glare

Applications

• RGB signal monitoring systems
• Status indicators requiring wide visibility
• Decorative lighting applications

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm optical characteristics and binning. Ensure compatibility with moisture sensitivity level requirements during storage and handling. Confirm that the 4-PLCC footprint matches the target PCB design constraints before finalizing procurement orders.

Selection Notes

Select this component when a compact surface-mount solution is required for multi-color indication. Consider the specific forward voltage differences between the red and blue/green channels for driver circuit design. Evaluate the millicandela ratings to ensure sufficient brightness for the intended application environment.

Part Context

This part belongs to the Cree LED PLCC4 series of multi-color LEDs. It represents a standard industry form factor widely used in electronic devices where space is limited but color versatility is necessary. The product line focuses on providing reliable performance in a small footprint.

Replacement Considerations

CLMVB-FKA-CG1F1A1BB8S3S3
