CLMVC-FKA-CL1D1L71BB7C3C3

Overview

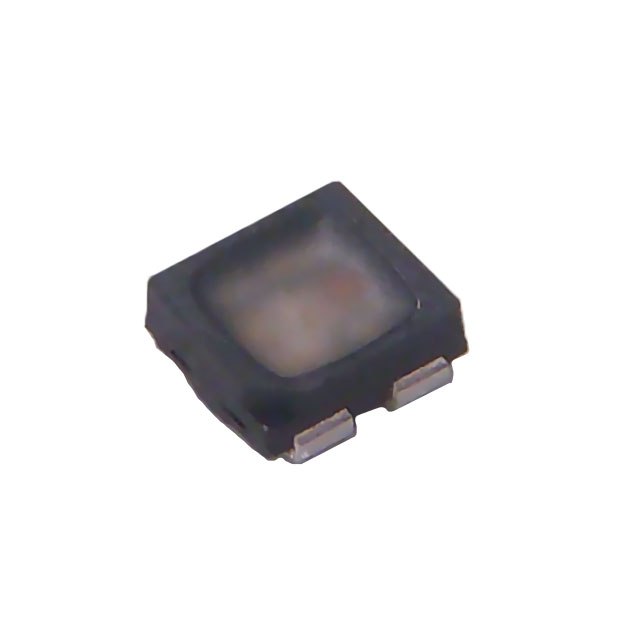

The CLMVC-FKA-CL1D1L71BB7C3C3 is a surface-mount RGB LED from Cree LED, housed in a 4-PLCC package with J-leads. It features a clear, colorless lens and operates as a common anode device. The component emits red light at 622 nm, green at 530 nm, and blue at 470 nm. Typical forward voltages are 2 V for red and 3 V for green and blue. Luminous intensity values are 337 mcd (red), 420 mcd (green), and 84 mcd (blue). Dimensions are 2.00 mm x 2.00 mm x 1.00 mm max.

Feature Summary

• Integrated RGB tri-color configuration within a single compact SMD footprint
• Common anode electrical architecture for simplified circuit control
• Clear optical lens design to maximize light transmission efficiency

Applications

• Indoor digital signage displays
• High-resolution video screens
• Decorative lighting systems
• Amusement park attractions

Procurement Notes

Verify the specific suffix against the manufacturer datasheet to confirm exact binning and wavelength tolerances. Ensure compatibility with standard reflow soldering profiles for PLCC packages. Confirm RoHS compliance status prior to integration into final assemblies.

Selection Notes

Select this component for applications requiring a small form factor with integrated primary colors. The common anode structure reduces pin count requirements compared to discrete LEDs. Verify that the specified viewing angles and intensity levels meet the system's brightness and uniformity targets.

Part Context

This part belongs to the CLMVC series of multi-color LEDs designed for high-brightness applications. It represents a solution for creating full-color displays using a single surface-mount device, reducing assembly complexity and board space compared to separate red, green, and blue components.

Replacement Considerations

CLMVC-FKA-CF1G1L1BB7D3C3 is listed as an alternative part number within the same product family.
