CLMWB-FKC-CHJKMNST9AFBB794673

Overview

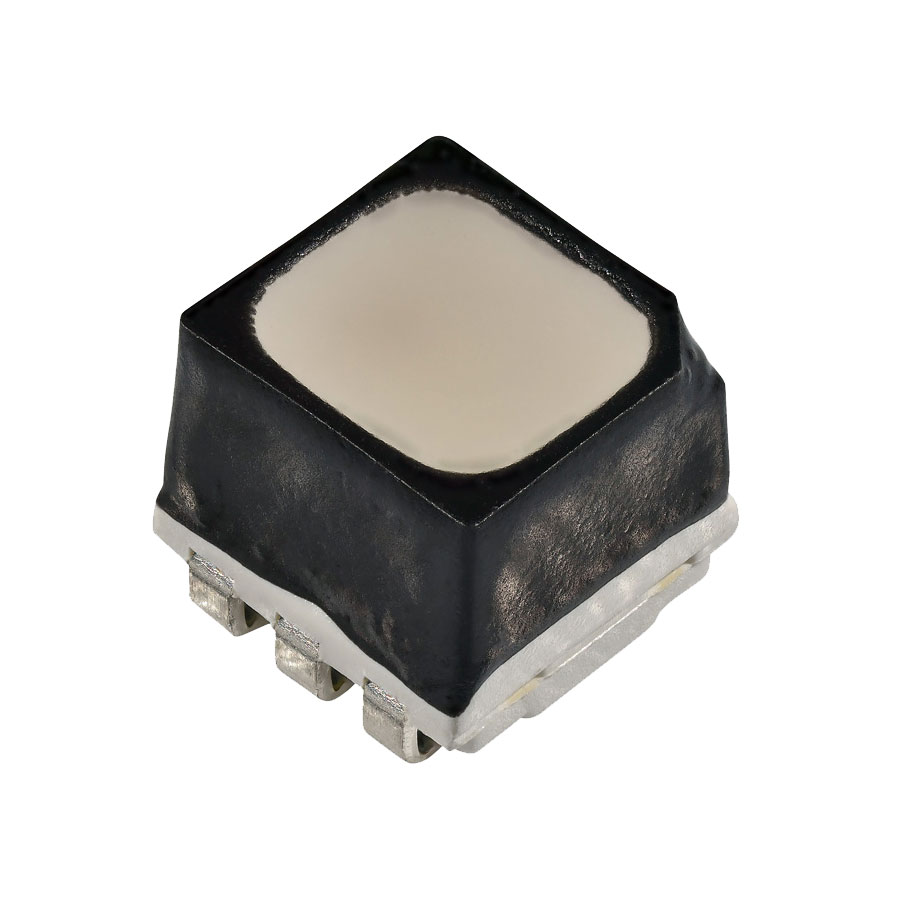

The CLMWB-FKC-CHJKMNST9AFBB794673 is a Cree LED multi-color RGB SMD component featuring integrated cool white. It utilizes a compact 1.6 mm x 1.7 mm footprint designed for high-resolution outdoor video screens. The device incorporates IPx8 waterproofing and offers a 120-degree beam angle to ensure uniform light distribution.

Feature Summary

• IPx8 rated waterproof construction suitable for harsh outdoor environments
• Optimized 120-degree beam angle for uniform light distribution
• Compact 1.6 mm by 1.7 mm footprint for high-density pixel pitch applications

Applications

• High-resolution outdoor LED video screens
• Large-format digital signage displays
• Advertising signs requiring weather resistance

Procurement Notes

Verify the specific suffix against official Cree documentation to confirm exact optical binning, wavelength tolerances, and forward voltage characteristics. Ensure the ordering code matches the required color temperature and luminous flux specifications for the target application design.

Selection Notes

Select this component when a small form factor combined with robust environmental sealing is required. The integrated white channel simplifies optical mixing compared to discrete RGB setups. Confirm compatibility with the intended pixel pitch requirements for the display module.

Part Context

This part belongs to the CLMWB series of three-in-one surface-mount LEDs. The series is engineered specifically for large-format video walls and stadium ribbons where reliability and image quality are critical in demanding operating conditions.

Replacement Considerations

Public confirmed substitute part numbers are not available in verified documentation.
