CLP6B-WKW-CD0F0233

Overview

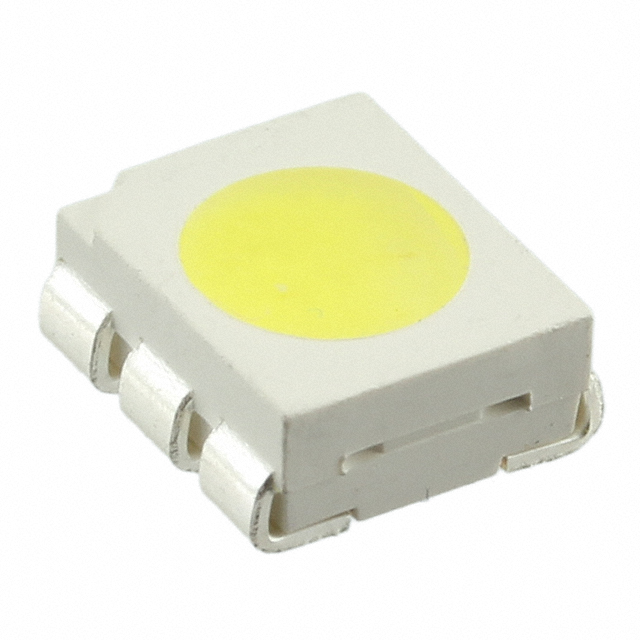

The CLP6B-WKW-CD0F0233 is a mid-power white LED from Cree LED, housed in a PLCC-6 surface-mount package. It emits warm white light with a correlated color temperature of 3200 K and a viewing angle of 120 degrees. The component operates at a forward current of 50 mA with a typical forward voltage of 3.8 V and a power rating of 220 mW. It features a luminous intensity of 22.4 cd and measures 6 mm by 5 mm by 2.5 mm.

Feature Summary

• Emits warm white light with a 3200 K color temperature for specific lighting applications.
• Features a 120-degree viewing angle to provide wide-area illumination.
• Utilizes a standard PLCC-6 SMD package for compact circuit board integration.

Applications

• Retail display lighting requiring high color fidelity
• Hotel and hospitality ambient lighting fixtures
• Restaurant accent lighting

Procurement Notes

Verify the exact suffix against official datasheets to confirm the specific binning and color coordinates. Ensure compatibility with RoHS3 standards and check moisture sensitivity level (MSL) requirements during storage and soldering processes. Confirm availability through authorized distributors as lead times may vary.

Selection Notes

Select this component when a warm white appearance is required for retail or hospitality environments. Compare the 3200 K CCT against other variants like CD0F0453 (5500 K) or CC0F0153 (8000 K) based on desired ambiance. Ensure the 50 mA drive current aligns with the system's power budget and thermal management capabilities.

Part Context

This part belongs to the CLP6B-WKW/MKW series of mid-power LEDs. These components are designed for general illumination and indicator applications where consistent color quality and reliability are essential. The series offers various color temperatures to suit different aesthetic and functional lighting needs.

Replacement Considerations

Check for direct substitutes within the same series such as CLP6B-MKW-CB0E0513 for neutral white or CLP6B-WKW-CC0F0153 for cool white options if the color temperature requirement differs. Verify pinout and mechanical dimensions remain identical before substitution.
