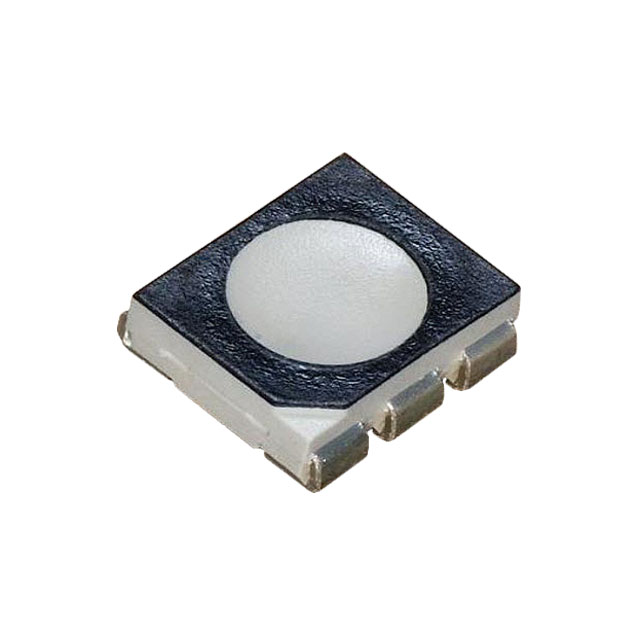

CLP6C-FKB-CKNPRGJBB7A363

$0.54

Description：LED RGB DIFFUSED 6PLCC SMD
Series：-
Mfr：Cree LED
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:9e99a462a750 Category: LED Indication - Discrete Brand: Cree LED

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED RGB DIFFUSED 6PLCC SMD
Series：-
Mfr：Cree LED
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red, Green, Blue (RGB)
Configuration：Independent
Lens Color：White
Lens Transparency：Diffused
Millicandela Rating：840mcd Red, 1680mcd Green, 420mcd Blue
Lens Style：Round with Flat Top
Lens Size：4.00mm Dia
Voltage - Forward (Vf) (Typ)：2V Red, 3.2V Green, 3.2V Blue
Current - Test：20mA Red, 20mA Green, 20mA Blue
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：621.5nm Red, 530nm Green, 470nm Blue
Wavelength - Peak：-
Features：-
Package / Case：6-SMD, J-Lead
Supplier Device Package：6-PLCC
Size / Dimension：6.00mm L x 5.00mm W
Height (Max)：2.60mm
Grade：-
Qualification：-

Download product information

CLP6C-FKB-CKNPRGJBB7A363

Overview

The CLP6C-FKB-CKNPRGJBB7A363 is a multi-color RGB LED from Cree LED, housed in a PLCC-6 surface-mount package. It features a colorless lens and operates within a temperature range of -40°C to +100°C. The component has a maximum height of 2.8 mm and dimensions of 3.5 mm by 3.5 mm. Electrical characteristics include forward voltages of 2V for red, 3.2V for green, and 3.2V for blue. Typical optical intensities are 560 mcd for red, 1120 mcd for green, and 280 mcd for blue. Peak wavelengths are specified at 624 nm for red, 535 nm for green, and 475 nm for blue.

Feature Summary

Integrated RGB tri-color configuration within a single PLCC-6 SMD package
Colorless lens design providing high light transmission efficiency
Wide operating temperature range suitable for demanding environments

Applications

Large-format digital signage displays
High-resolution outdoor video screens
Stadium ribbon displays
Full-color information signs

Procurement Notes

Verify the specific suffix A363 against official Cree LED documentation to confirm binning and wavelength specifications. Ensure compatibility with moisture sensitivity level (MSL) requirements during storage and reflow soldering processes. Confirm that the PLCC-6 footprint matches the target PCB layout before finalizing procurement orders.

Selection Notes

Select this component when a compact RGB solution with high brightness is required for large-scale display applications. The PLCC-6 form factor allows for dense pixel pitch configurations. Consider the wide viewing angle and high intensity metrics for visibility in bright ambient conditions typical of outdoor or stadium installations.

Part Context

This part belongs to the CLP6C series of high-brightness multi-color LEDs designed for video screen applications. It utilizes standard PLCC-6 packaging common in the industry for reliable surface mounting. The product line focuses on delivering consistent color quality and high luminous intensity for professional display systems.
