Product Detailed Parameters
- Description：LED RGB DIFFUSED 6PLCC SMD
- Series：-
- Mfr：Cree LED
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Red, Green, Blue (RGB)
- Configuration：Independent
- Lens Color：White
- Lens Transparency：Diffused
- Millicandela Rating：915mcd Red, 1820mcd Green, 457.5mcd Blue
- Lens Style：Round with Flat Top
- Lens Size：4.00mm Dia
- Voltage - Forward (Vf) (Typ)：2V Red, 3.2V Green, 3.2V Blue
- Current - Test：20mA Red, 20mA Green, 20mA Blue
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：621.5nm Red, 530nm Green, 470nm Blue
- Wavelength - Peak：-
- Features：-
- Package / Case：6-SMD, J-Lead
- Supplier Device Package：6-PLCC
- Size / Dimension：6.00mm L x 5.00mm W
- Height (Max)：2.60mm
- Grade：-
- Qualification：-
Download product information
Overview

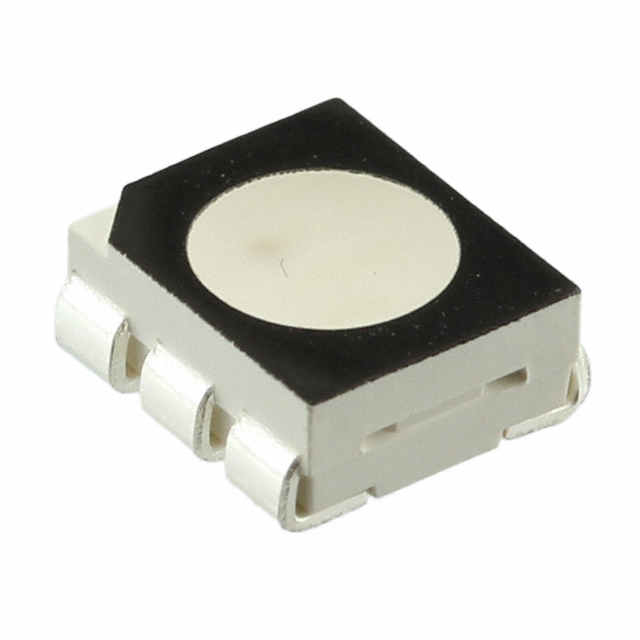

The CLP6C-FKB-CM1Q1H1BB7R3R3 is a surface-mount RGB LED from Cree LED, housed in a 6-PLCC package with dimensions of 6.00mm length, 5.00mm width, and a maximum height of 2.60mm. It features a diffused white lens with a 4.00mm diameter circular top-flat style and a 120° viewing angle. The component emits red light at 621.5nm (915mcd), green at 530nm (1820mcd), and blue at 470nm (457.5mcd). Forward voltages are typically 2V for red and 3.2V for both green and blue channels. Testing currents are specified at 20mA for all three colors.
Feature Summary
- Integrates red, green, and blue emitters within a single compact surface-mount package for color mixing applications.
- Features a diffused white lens design to provide uniform light distribution and a wide 120-degree viewing angle.
- Constructed with J-leads on a 6-SMD footprint to facilitate automated surface-mount assembly processes.
Applications
- Status indicators requiring multi-color signaling
- Backlighting for electronic device interfaces
- Decorative lighting systems
Procurement Notes
Verify the specific ordering suffix against the manufacturer datasheet to ensure correct wavelength binning and forward voltage characteristics. Confirm moisture sensitivity level (MSL 5A) handling requirements during storage and reflow soldering. Check RoHS3 compliance status for environmental regulations. Ensure PCB pad layout matches the 6-PLCC package dimensions to prevent assembly defects.
Selection Notes
Select this component when a low-profile 2.60mm height is required for space-constrained designs. Consider the specific luminous intensity values if visual brightness is critical. Verify that the 120-degree viewing angle aligns with optical system requirements. Compare forward voltage specifications with available drive circuitry capabilities to ensure proper current limiting resistor selection.
Part Context
This part belongs to the CLP6C series of multi-color LEDs manufactured by Cree LED. The series utilizes standard PLCC-6 packaging common in surface-mount technology. It serves as a discrete indicator solution within optoelectronic components, distinct from high-power illumination devices or single-color variants.
Replacement Considerations
Consult official substitution guides for electrically equivalent parts. Verify pinout compatibility and thermal characteristics before replacing with alternative manufacturers' RGB LEDs.
