Product Detailed Parameters
- Description：RF FILTER LOW PASS 7MHZ INLINE
- Series：CLPFL
- Mfr：Crystek Corporation
- Package：Bulk
- Frequency：7MHz
- Bandwidth：-
- Filter Type：Low Pass
- Ripple：-
- Insertion Loss：-
- Mounting Type：Free Hanging (In-Line)
- Package / Case：Inline, BNC Connection, F and M
- Size / Dimension：0.550" Dia x 2.590" L (13.97mm x 65.79mm)
- Height (Max)：-
Download product information
Overview

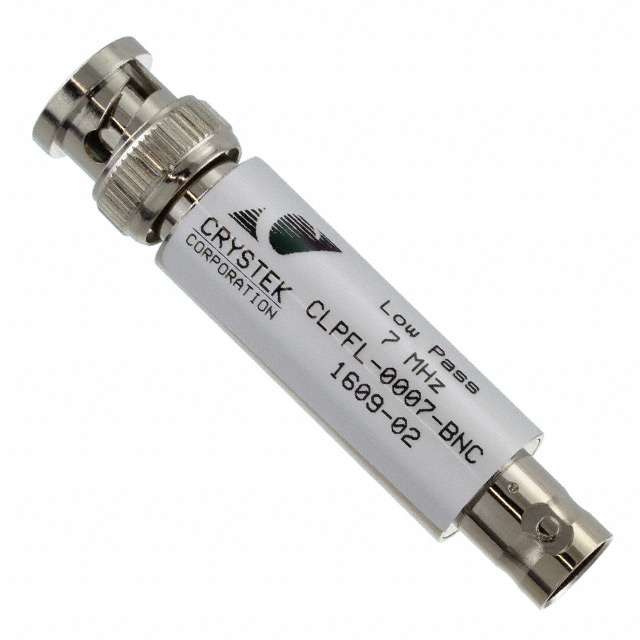

The CLPFL-0007-BNC is a low-pass RF filter manufactured by Crystek Corporation, designed for signal conditioning applications. It features a cutoff frequency of 7 MHz and operates within a standard impedance of 50 Ohms. The component utilizes BNC connectors for inline installation, facilitating direct integration into test equipment and laboratory setups. It is housed in a rugged enclosure suitable for general-purpose use.
Feature Summary
- Designed with excellent out-of-band rejection capabilities to ensure signal integrity
- Housed in a rugged BNC connector housing for durable inline deployment
- Optimized for general test equipment and laboratory environments
Applications
- General laboratory testing setups
- Test equipment signal conditioning
- RF circuit filtering applications requiring BNC connectivity
Procurement Notes
Verify the specific datasheet version for the CLPFL-0007-BNC to confirm exact electrical tolerances and mechanical dimensions prior to integration. Ensure that the 50 Ohm impedance matches the system requirements. Confirm RoHS compliance status through official manufacturer documentation before procurement finalization.
Selection Notes
Select this component when a 7 MHz low-pass characteristic is required with BNC interface compatibility. Consider the rugged housing design for environments demanding physical durability. Verify that the inline form factor aligns with the available space and connection topology of the target assembly.
Part Context
This part belongs to the CLPFL series of low-pass filters from Crystek Corporation. The series is characterized by rugged housings and high out-of-band rejection. While other variants in the line may utilize SMA connectors or different cutoff frequencies, this specific model is defined by its BNC configuration and 7 MHz specification.
Replacement Considerations
Consult official Crystek substitution guides for verified equivalents. Generic replacements may not match the specific out-of-band rejection profiles or mechanical BNC interface constraints of the original component.
