CLPFL-0010-BNC

Overview

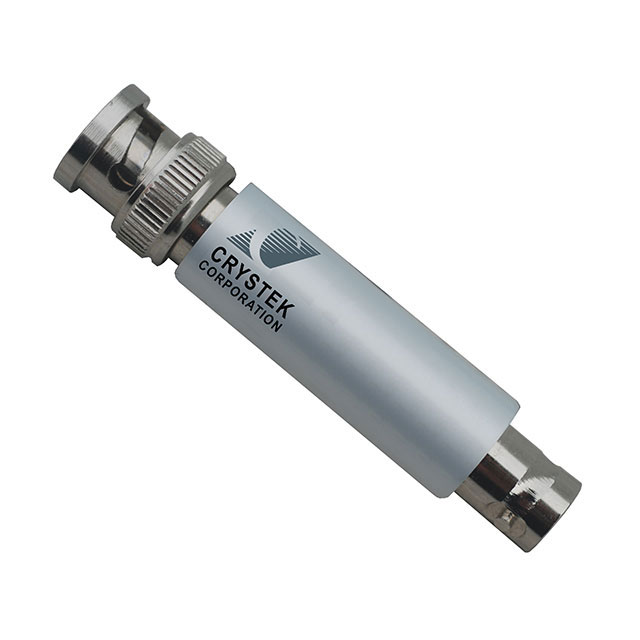

The CLPFL-0010-BNC is a low-pass RF filter manufactured by Crystek Corporation. It operates within a frequency range of DC to 10 MHz and features a 9th-order response. The component maintains a characteristic impedance of 50 Ohms and utilizes BNC connectors for in-line installation. It is designed for rugged housing applications with excellent out-of-band rejection capabilities.

Feature Summary

• Provides high attenuation for frequencies above the passband
• Utilizes a robust mechanical housing for durability
• Designed for general laboratory and test equipment integration

Applications

• General laboratory testing environments
• Test equipment signal conditioning
• RF circuit filtering applications

Procurement Notes

Verify the specific datasheet version for precise insertion loss and rejection values at target frequencies. Confirm that the BNC connector orientation matches your system requirements. Ensure the operating temperature range of -40°C to +85°C aligns with your environmental conditions before finalizing procurement decisions.

Selection Notes

Select this component when a sharp cutoff near 10 MHz is required for low-frequency RF signals. The 9th-order design offers superior selectivity compared to lower-order alternatives. Consider the physical size of the BNC housing during PCB or chassis layout planning to ensure adequate clearance for the rugged enclosure.

Part Context

This part belongs to the Crystek CLPFL series, which specializes in low-pass filters with integrated BNC connectors. These components are engineered for ease of use in benchtop setups and modular systems where quick connection and disconnection are necessary without soldering.

Replacement Considerations

Check for CHPFL-0010-BNC if a high-pass response is needed instead. Verify compatibility with other Crystek BNC-series filters for consistent mechanical form factors in multi-filter assemblies.
