CLPFL-2000

Overview

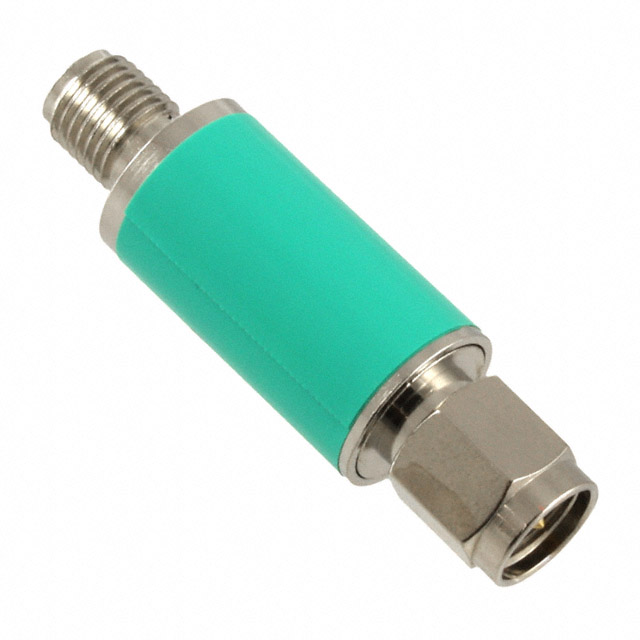

The CLPFL-2000 is a low-pass RF filter manufactured by Crystek Corporation, designed for inline applications with SMA female and male connectors. It operates within a frequency range of DC to 2000 MHz. The component features an insertion loss between 0.02 and 0.62 dB and provides rejection levels ranging from 0.60 to 41.12 dB. Constructed in a rugged housing, it maintains a 50Ω impedance characteristic. The physical dimensions are specified as 0.435 inches in diameter by 1.504 inches in length.

Feature Summary

• Designed with excellent out-of-band rejection capabilities
• Constructed in a rugged housing for durability
• Features 50Ω connector interface

Applications

• Radio frequency signal processing
• Communication systems filtering
• Test and measurement equipment

Procurement Notes

Verify the specific connector gender configuration (SMA Female/Male) against system requirements before procurement. Confirm that the operating frequency range up to 2000 MHz aligns with the intended application spectrum. Ensure environmental conditions fall within standard operational limits as no extended temperature data is explicitly provided for this specific part number in available documentation.

Selection Notes

Select this component when a low-pass filter with a 2000 MHz cutoff is required. The inline design with SMA connections suits direct cable integration. Consider the rugged housing if mechanical stability is necessary. Verify that the insertion loss and rejection specifications meet the system's signal integrity requirements compared to other series options.

Part Context

This component belongs to the CLPFL series of low-pass filters from Crystek Corporation. The series is characterized by rugged housings and 50Ω connectors. Similar models in the series include the CLPFL-0800 and CLPFL-0700, which offer lower cutoff frequencies. The CLPFL-2000 specifically targets higher frequency applications within the UHF and L-band ranges.

Replacement Considerations

Direct substitutes are not explicitly confirmed in public documentation. Models such as CLPFL-0800 or CLPFL-0700 may serve as alternatives if lower cutoff frequencies are acceptable. Verify connector compatibility and electrical performance parameters before substitution.
