Product Detailed Parameters
- Description：LED RGBW 8PLCC SMD
- Series：-
- Mfr：Cree LED
- Package：Tape & Reel (TR)
- Color：Red, Green, Blue, White (RGBW)
- Configuration：Independent
- Lens Color：-
- Lens Transparency：-
- Millicandela Rating：4500mcd Red, 10400mcd Green, 3000mcd Blue, 8200mcd White
- Lens Style：Oval with Flat Top
- Lens Size：-
- Voltage - Forward (Vf) (Typ)：2.1V Red, 3V Green, 3.1V Blue, 2.9V White
- Current - Test：100mA
- Viewing Angle：-
- Mounting Type：Surface Mount
- Wavelength - Dominant：-
- Wavelength - Peak：-
- Features：-
- Package / Case：8-SMD, No Lead
- Supplier Device Package：8-PLCC
- Size / Dimension：5.00mm L x 5.20mm W
- Height (Max)：1.20mm
- Grade：-
- Qualification：-
Download product information
Overview

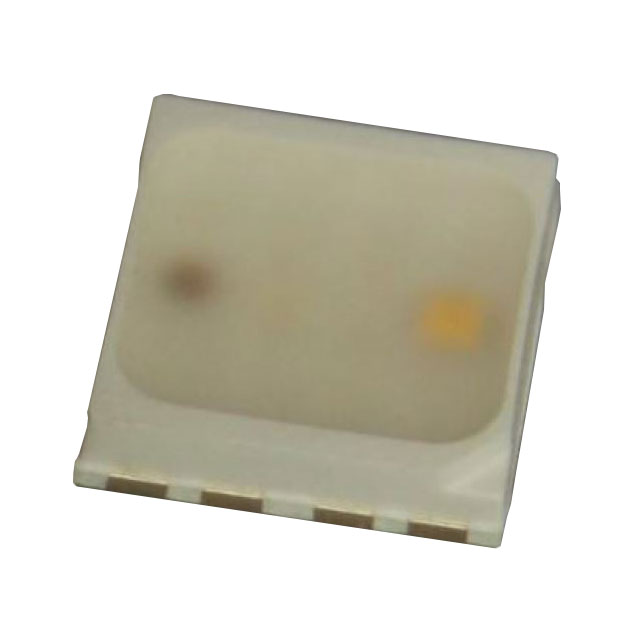

The CLQ6A-TKW-C1L1R1H1QBB7935BB3 is a surface-mount RGBW LED in an 8-PLCC package. It integrates red (622nm), green (528nm), blue (468nm), and white (4000K) emitters. Forward voltages are 2.1V, 3.0V, 3.1V, and 2.9V respectively at 100mA test current. Luminous intensities are 4500mcd, 10400mcd, 3000mcd, and 8200mcd. Dimensions are 5.00mm x 5.20mm with a maximum height of 1.20mm.
Feature Summary
- Integrates four independent color channels within a single compact PLCC8 footprint for simplified optical design.
- Provides combined RGB and neutral white light output to support complex color mixing and general illumination requirements.
Applications
- Commercial downlights
- GU10 lamp applications
- Architectural accent lighting
Procurement Notes
This component is officially marked as obsolete by the manufacturer. Verify end-of-life status and availability through authorized distributors before finalizing designs. Ensure compliance with RoHS3 specifications and MSL level 5A handling requirements during storage and assembly processes.
Selection Notes
Select this part for applications requiring integrated RGBW functionality in a standard PLCC8 form factor. Consider the specific luminous intensity values and forward voltage drops for each channel when designing drive circuits. Verify that the rectangular lens shape meets the optical distribution needs of the target fixture.
Part Context
Part of the Cree LED CLQ6A series, designed for high-brightness multi-color applications. The series utilizes advanced semiconductor technology to deliver stable color performance in a small surface-mount package suitable for automated assembly processes.
Replacement Considerations
No public confirmed substitute part numbers are available. Due to the obsolete status, alternative components must be evaluated based on mechanical dimensions, electrical characteristics, and optical performance compatibility.
