- Description：CLQ6A-YKW-C1L1R1H1NBB7C3CJT3
- Series：-
- Mfr：Cree LED
- Package：Bulk
- Color：Amber, Blue, Green, Red
- Configuration：Independent
- Lens Color：White
- Lens Transparency：Diffused
- Millicandela Rating：6190mcd Amber, 3002mcd Blue, 10715mcd Green, 4430mcd Red
- Lens Style：Rectangle with Flat Top
- Lens Size：-
- Voltage - Forward (Vf) (Typ)：2.1V Amber, 3.1V Blue, 3V Green, 2.1V Red
- Current - Test：100mA Amber, 100mA Blue, 100mA Green, 100mA Red
- Viewing Angle：-
- Mounting Type：Surface Mount
- Wavelength - Dominant：592nm Amber, 468nm Blue, 528nm Green, 622nm Red
- Wavelength - Peak：-
- Features：-
- Package / Case：8-SMD, No Lead
- Supplier Device Package：-
- Size / Dimension：5.20mm L x 5.00mm W
- Height (Max)：1.20mm
- Grade：-
- Qualification：-
Download product information
Overview

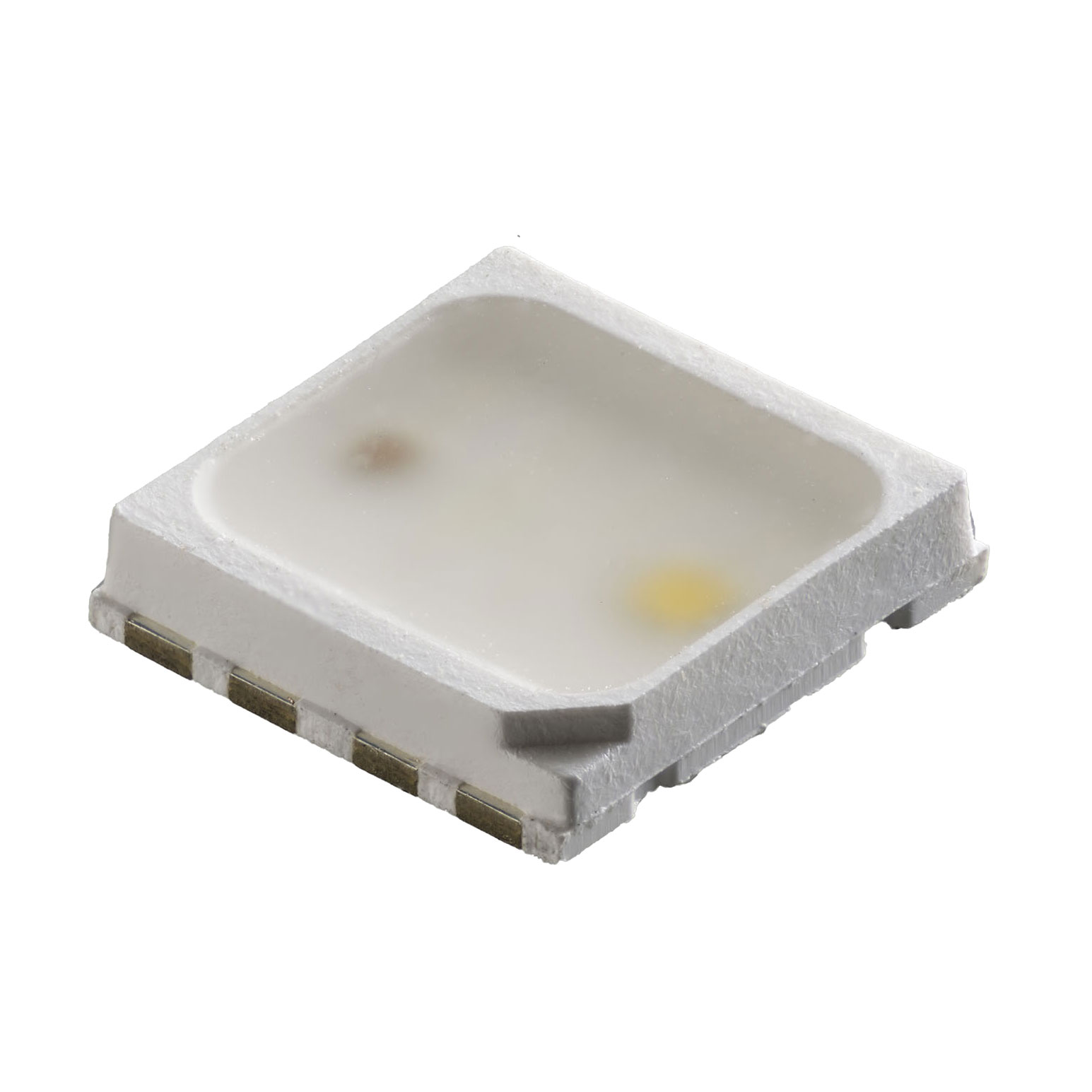

The Cree LED CLQ6A-YKW-C1L1R1H1NBB7C3CJT3 is a PLCC-8 surface-mount RGBW LED. It integrates Red (622nm), Green (528nm), Blue (468nm), and Amber (592nm) chips. Typical forward voltages are 2.1V for Red, 3.0V for Green, 3.1V for Blue, and 2.9V for White/Amber variants in similar series. Luminous intensity reaches up to 10400 mcd for green. The package measures 5.00mm x 5.20mm with a maximum height of 1.20mm. Moisture sensitivity level is 5A.
Feature Summary
- Integrates four distinct color channels within a single compact SMD package
- Features a rectangular diffused lens for uniform light distribution
- Designed for high luminous efficacy in multi-color applications
Applications
- Architectural lighting systems
- Decorative illumination modules
- Smart home lighting devices
Procurement Notes
Verify the specific suffix configuration against the manufacturer's current datasheet to ensure correct wavelength and binning requirements. Confirm RoHS compliance status and moisture sensitivity handling procedures prior to assembly. Check for any product change notices or end-of-life announcements affecting supply continuity.
Selection Notes
Select this component when a single-package solution for red, green, blue, and amber mixing is required. Ensure the driving circuitry supports the individual forward voltage differences between channels. Verify thermal management capabilities align with the package's power dissipation limits for sustained operation.
Part Context
This part belongs to the CLQ6A family of Cree LED products, which are designed as 4-in-1 surface-mount LEDs. These components utilize PLCC-8 packages to simplify PCB layout compared to discrete LED arrangements. The series offers optimized system-level performance for complex color rendering tasks.
Replacement Considerations
No direct public substitute part numbers are confirmed in the provided documentation. Evaluate alternative PLCC-8 RGBW LEDs from other manufacturers only if electrical parameters and mechanical dimensions match exactly.
