Product Detailed Parameters
- Description：CMC 2.5A 2LN 500 OHM SMD
- Series：CM04
- Mfr：Taiyo Yuden
- Package：Tape & Reel (TR)
- Filter Type：Power, Signal Line
- Number of Lines：2
- Current Rating (Max)：2.5A
- DC Resistance (DCR) (Max)：60mOhm
- Voltage Rating - DC：50V
- Voltage Rating - AC：-
- Operating Temperature：-25°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.205" L x 0.354" W (5.20mm x 9.00mm)
- Height (Max)：0.173" (4.40mm)
- Package / Case：Horizontal, 4 Gull Wing
- Inductance @ Frequency：-
- Impedance @ Frequency：500 Ohms @ 160 MHz
Download product information
Overview

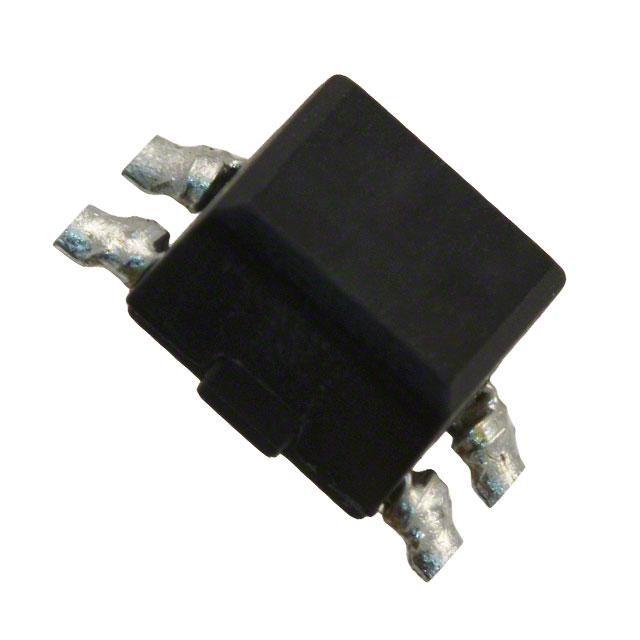

The CM04RC07T is a two-line common mode choke coil manufactured by Taiyo Yuden, designed for surface mount applications. It features a typical impedance of 500 Ohms at 160 MHz and supports a maximum DC current of 2.5 Amperes. The component has a maximum DC resistance (DCR) of 60 milliohms and operates within a temperature range of -25°C to +105°C. Its physical dimensions are 9.0mm in length, 5.2mm in width, with a maximum height of 4.40mm. The device utilizes a horizontal 4-lead鸥翼 package configuration.
Feature Summary
- Provides effective noise suppression for both power and signal lines through dual-line filtering capability.
- Engineered for high-current handling up to 2.5A with low DC resistance to minimize power loss.
- Constructed for reliable operation across an extended industrial temperature range.
Applications
- Noise filtering for DC power circuits
- Signal line protection in electronic assemblies
- Common mode interference suppression in compact devices
Procurement Notes
Verify component status as the CM04RC07T is listed as discontinued or obsolete in major distributor databases. Confirm availability of alternative stock or valid replacement parts before finalizing design specifications. Ensure compatibility with existing PCB footprints if substituting from active inventory sources.
Selection Notes
Select this component when designing systems requiring robust common mode rejection for dual-line configurations. Consider its 2.5A current rating and 500 Ohm impedance profile for appropriate noise attenuation needs. Evaluate the 0805-equivalent footprint constraints against available board space requirements.
Part Context
This component belongs to the CM04 series of common mode chokes from Taiyo Yuden. The series is characterized by small form factors suitable for dense surface mount layouts. These inductors are engineered to meet specific electromagnetic interference reduction standards for modern electronic equipment.
Replacement Considerations
Public confirmed substitute part numbers are not explicitly documented in the provided source material. Verify equivalent specifications such as impedance, current rating, and footprint dimensions when sourcing alternatives from other manufacturers.
