Product Detailed Parameters
- Description：CMC 3A 2LN 270 OHM SMD
- Series：CM04
- Mfr：Taiyo Yuden
- Package：Tape & Reel (TR)
- Filter Type：Power, Signal Line
- Number of Lines：2
- Current Rating (Max)：3A
- DC Resistance (DCR) (Max)：30mOhm
- Voltage Rating - DC：50V
- Voltage Rating - AC：-
- Operating Temperature：-25°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.205" L x 0.354" W (5.20mm x 9.00mm)
- Height (Max)：0.173" (4.40mm)
- Package / Case：Horizontal, 4 Gull Wing
- Inductance @ Frequency：-
- Impedance @ Frequency：270 Ohms @ 200 MHz
Download product information
Overview

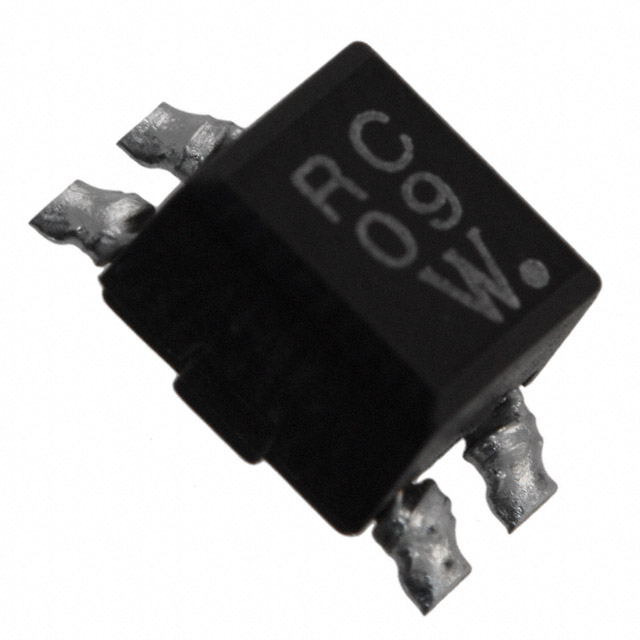

The CM04RC09T is a two-line common mode choke manufactured by Taiyo Yuden, designed for surface mount applications. It features an impedance of 270 Ohms at 200 MHz and supports a maximum DC current of 3A with a DC resistance of 30 mOhms. The component operates within a temperature range of -25°C to +105°C and has a DC voltage rating of 50V. Its physical dimensions are 5.20mm in length, 9.00mm in width, and a maximum height of 4.40mm.
Feature Summary
- Provides common mode noise suppression for dual signal or power lines
- Optimized for high-frequency interference filtering at 200 MHz
- Supports high current handling up to 3A with low DC resistance
Applications
- Data line filtering in electronic circuits
- Noise suppression for signal lines requiring common mode rejection
- Power line filtering for low-voltage DC applications
Procurement Notes
Verify component status as the CM04RC09T is listed as obsolete or discontinued by major distributors. Confirm availability through alternative channels or authorized stockists if procurement is required. Ensure compatibility with existing design specifications before sourcing replacement components.
Selection Notes
Select this component for applications requiring dual-line common mode filtering with a 3A current rating. Consider the 270 Ohm impedance at 200 MHz for high-frequency noise reduction. Verify that the 50V DC voltage rating meets circuit requirements and that the surface mount package fits the PCB layout constraints.
Part Context
This component belongs to the CM04 series of common mode chokes from Taiyo Yuden. It is part of a family of surface mount filters designed for compact electronic designs. The series offers various impedance and current ratings to suit different filtering needs in data and power line applications.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer resources for potential obsolescence management strategies or equivalent series components.
