Product Detailed Parameters
- Description：CMC 4A 2LN 100 OHM SMD
- Series：CM04
- Mfr：Taiyo Yuden
- Package：Tape & Reel (TR)
- Filter Type：Power, Signal Line
- Number of Lines：2
- Current Rating (Max)：4A
- DC Resistance (DCR) (Max)：20mOhm
- Voltage Rating - DC：50V
- Voltage Rating - AC：-
- Operating Temperature：-25°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.205" L x 0.354" W (5.20mm x 9.00mm)
- Height (Max)：0.173" (4.40mm)
- Package / Case：Horizontal, 4 Gull Wing
- Inductance @ Frequency：-
- Impedance @ Frequency：100 Ohms @ 200 MHz
Download product information
Overview

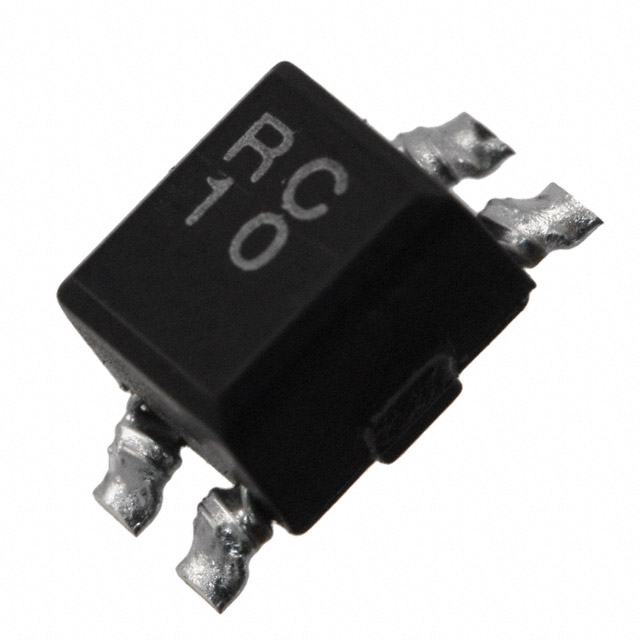

The CM04RC10T is a surface-mount common-mode choke coil manufactured by Taiyo Yuden, designed for DC and signal lines. It features a two-line configuration with an impedance of 100 Ohms at 200 MHz. The component supports a maximum current rating of 4A and operates within a voltage range up to 50V. Its DC resistance (DCR) is specified at 20mOhm. This device is engineered to filter unwanted noise in high-power applications such as DC/DC converters and motor drives.
Feature Summary
- Provides effective filtering of unwanted noise on DC and signal lines through high impedance characteristics.
- Supports high current handling capabilities suitable for demanding power electronics environments.
- Designed for surface-mount integration into compact electronic assemblies.
Applications
- High-power DC/DC converters
- Motor drives
- Signal line noise suppression
Procurement Notes
Verify the specific datasheet version when sourcing, as manufacturer documentation may be updated. Confirm that the required impedance at 200 MHz and current ratings align with your circuit design constraints. Ensure compatibility with your PCB footprint and reflow soldering profiles. Cross-reference part numbers carefully to avoid confusion with similar series components.
Selection Notes
Select this component when designing circuits requiring robust common-mode noise suppression in space-constrained layouts. It is appropriate for applications involving significant current loads where low DC resistance is critical for efficiency. Consider its 50V rating and 4A capacity against your system's peak electrical demands to ensure reliable operation under all conditions.
Part Context
This component belongs to Taiyo Yuden's common-mode choke coil series, specifically optimized for surface-mount technology. It addresses electromagnetic interference issues in modern electronics by attenuating common-mode signals while allowing differential signals to pass. The design focuses on balancing high impedance performance with low insertion loss for power integrity.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided source material. Verify compatibility with alternative components based on impedance curves, current ratings, and physical dimensions before substitution.
