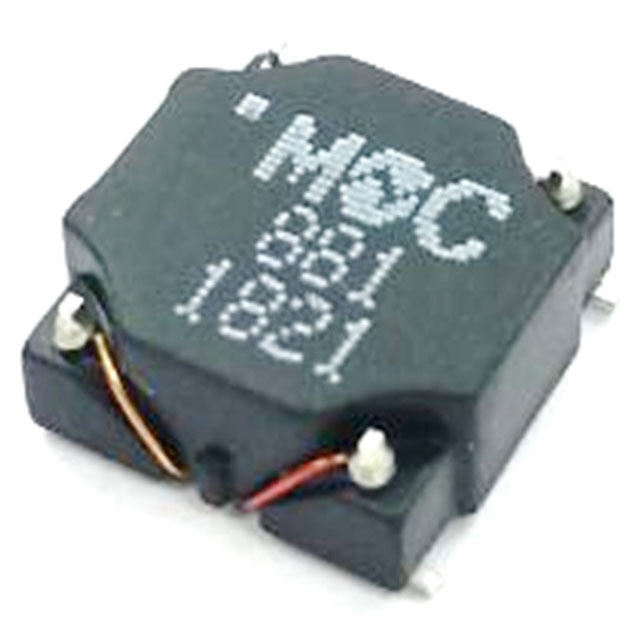

CM0903SG881N

$4.28

Description：CMC 880UH 1.63A 2LN SMD
Series：-
Mfr：Mentech Technology USA Inc.
Package：Tape & Reel (TR)

SKU:e460d83788a7 Category: Common Mode Chokes Brand: Mentech Technology USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 880UH 1.63A 2LN SMD
Series：-
Mfr：Mentech Technology USA Inc.
Package：Tape & Reel (TR)
Filter Type：Signal Line
Number of Lines：2
Current Rating (Max)：1.63A
DC Resistance (DCR) (Max)：110mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
Height (Max)：0.215" (5.46mm)
Package / Case：-
Inductance @ Frequency：880 µH @ 100 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

CM0903SG881N

Overview

The CM0903SG881N is a surface-mount common mode choke manufactured by Mentech Technology USA Inc. It features an inductance of 880 µH measured at 100 kHz and supports a current rating of 1.63 A. The device is designed for two-line applications with a DC resistance of 110 mΩ. It operates within a temperature range of -40°C to +125°C, providing high impedance to minimize common mode noise and ensuring excellent EMI performance for AC power lines.

Feature Summary

High impedance characteristics to minimize common mode noise
Excellent EMI performance for AC power line applications
Wide operating temperature range from -40°C to +125°C

Applications

AC power line filtering
EMI suppression in electronic circuits
Common mode noise reduction in two-line systems

Procurement Notes

Verify the manufacturer designation as Mentech Technology USA Inc. or Dongguan Mentech Optical & Magnetic depending on the specific supply chain source. Confirm the package type is Surface Mount Device (SMD) and ensure the electrical parameters match the required 880 µH inductance and 1.63 A current rating for your specific design constraints before procurement.

Selection Notes

Select this component when designing circuits requiring effective common mode noise suppression for AC power lines. The 1.63 A current rating and 110 mΩ DC resistance make it suitable for applications where moderate current handling is needed alongside significant EMI reduction. Ensure the PCB layout accommodates the SMD package dimensions.

Part Context

This component belongs to the common mode choke category produced by Mentech, a manufacturer specializing in transformers and inductors. The company focuses on R&D and production of electronic components, offering solutions for noise filtering and signal integrity in various electronic devices.
