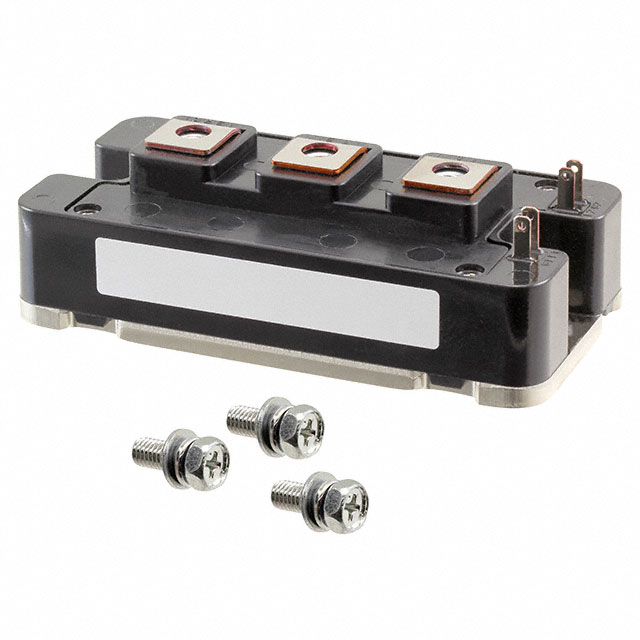

CM100DY-24A

Overview

The CM100DY-24A is a dual IGBT module manufactured by Powerex Inc. It features an N-channel configuration with two series-connected elements and built-in diodes in a center-tap arrangement. The device supports a maximum collector current of 100 A and a collector-emitter voltage of 1200 V. It utilizes a flange mount package with seven terminals and isolated case connection. The module operates at a maximum junction temperature of 150 °C and complies with RoHS standards.

Feature Summary

• Dual IGBT structure with integrated anti-parallel diodes for high-power switching applications
• Center-tap configuration enabling efficient circuit topology implementation
• Isolated flange mount design for effective thermal management and electrical safety

Applications

• AC drive inverters
• Servo control systems
• High power switching circuits

Procurement Notes

Verify the manufacturer origin carefully, as the CM100DY-24A designation appears in datasheets from both Powerex Inc. and Mitsubishi Electric Semiconductor. Confirm that the specific unit matches the required pinout and mechanical dimensions for your application. Request official component documentation to ensure authenticity and traceability before finalizing any acquisition.

Selection Notes

Select this module when designing circuits requiring 1200 V blocking capability and 100 A continuous current handling. The dual element configuration with center tap suits bridge or half-bridge topologies. Ensure the cooling system can maintain the junction temperature below 150 °C under peak load conditions to guarantee reliable long-term operation.

Part Context

This component belongs to the A-Series Dual IGBT Module family. It serves as a power semiconductor switch designed for industrial motor drives and renewable energy inverters. The part integrates fast recovery diodes alongside the IGBTs to handle reverse current flow efficiently during switching transitions.

Replacement Considerations

Cross-reference with Mitsubishi Electric CM100DU-24F or CM100DU-24NFH for potential functional equivalents within the same high-power switching category. Verify pin compatibility and thermal resistance values before substitution.
