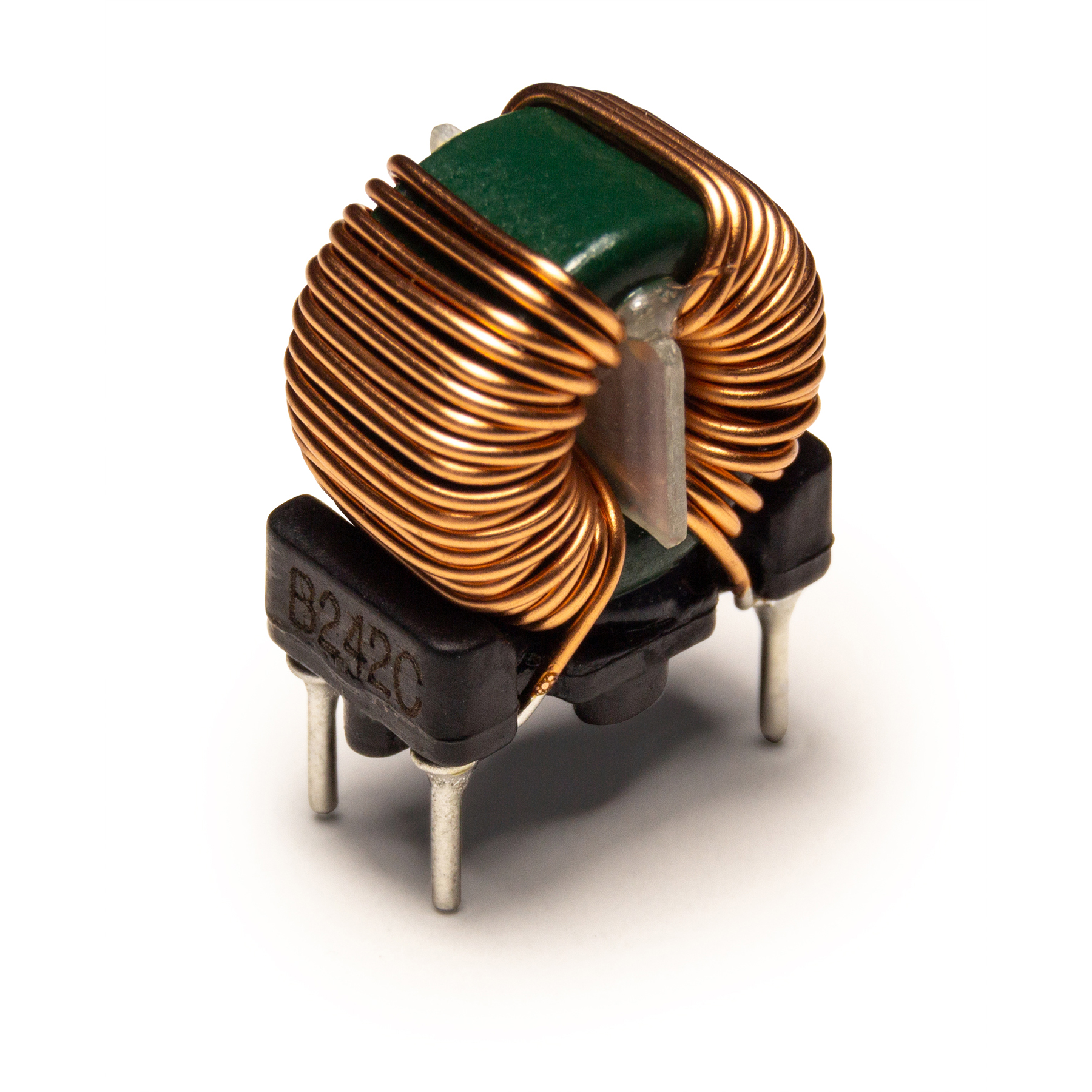

CM13091CT-872

$3.14

Description：CHOKE CMC 8.7MH 0.7A TH
Series：CM1309
Mfr：Bourns Inc.
Package：Tray

SKU:cb0275710b4a Category: Common Mode Chokes Brand: Bourns Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CHOKE CMC 8.7MH 0.7A TH
Series：CM1309
Mfr：Bourns Inc.
Package：Tray
Filter Type：-
Number of Lines：2
Current Rating (Max)：700mA
DC Resistance (DCR) (Max)：215mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：AEC-Q200
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.512" L x 0.362" W (13.00mm x 9.20mm)
Height (Max)：0.630" (16.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：8.7 mH @ 10 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

CM13091CT-872

Overview

The CM13091CT-872 is a through-hole common mode choke from the Bourns CM1309 series. It features an inductance of 8.7 mH at 10 kHz and supports a maximum DC current of 0.7 A. The component has a maximum DC resistance of 0.215 Ohms and withstands 600VAC. Operating temperature ranges from -40°C to +125°C, with dimensions of 13mm x 9.2mm x 16mm.

Feature Summary

Dual-line configuration for effective noise suppression
Through-hole mounting for secure PCB integration
High insulation voltage capability

Applications

Power supply input filtering
EMI suppression in AC/DC converters
Signal line protection

Procurement Notes

Verify the complete part number including suffixes against official Bourns documentation to ensure correct inductance and current ratings. Confirm RoHS compliance status and lead times directly with authorized distributors or the manufacturer prior to ordering.

Selection Notes

Select this component when high inductance is required for low-frequency noise attenuation in dual-line applications. Ensure the operating current does not exceed 0.7 A to prevent saturation. Verify physical footprint compatibility with the target PCB layout.

Part Context

Part of the CM1309 series, designed for general-purpose EMI filtering. The series offers various inductance values and current ratings within a standardized through-hole package, suitable for compact electronic designs requiring reliable noise reduction.

Replacement Considerations

Check for direct substitutes within the CM1309 series with matching 8.7 mH inductance and 0.7 A rating. Verify pinout and dimensional compatibility before substitution.
