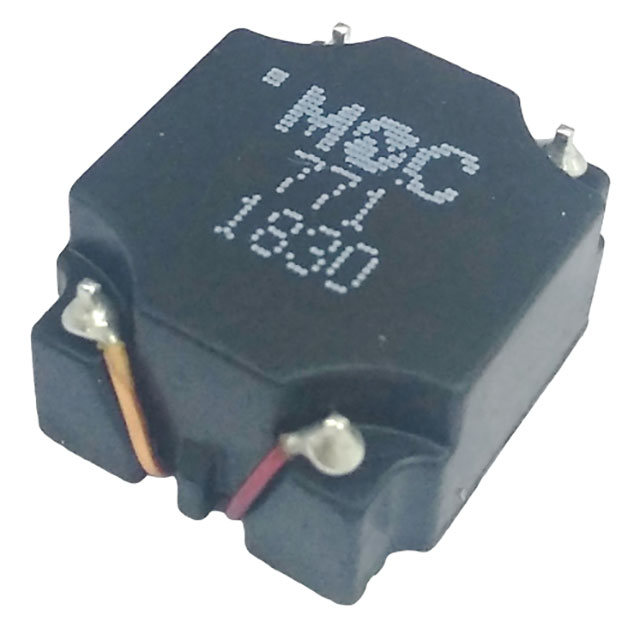

CM1385SG771N

$5.30

Description：CMC 770UH 3.6A 2LN SMD
Series：-
Mfr：Mentech Technology USA Inc.
Package：Tape & Reel (TR)

SKU:8e393691502a Category: Common Mode Chokes Brand: Mentech Technology USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 770UH 3.6A 2LN SMD
Series：-
Mfr：Mentech Technology USA Inc.
Package：Tape & Reel (TR)
Filter Type：Signal Line
Number of Lines：2
Current Rating (Max)：3.6A
DC Resistance (DCR) (Max)：25mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.768" L x 0.669" W (19.50mm x 17.00mm)
Height (Max)：0.394" (10.00mm)
Package / Case：-
Inductance @ Frequency：770 µH @ 100 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

CM1385SG771N

Overview

The CM1385SG771N is a surface-mount common mode choke manufactured by Mentech Technology USA Inc. It features a two-line configuration designed for filtering high-frequency noise on signal lines. The component has an inductance of 770 µH measured at 100 kHz and supports a current rating of 3.6 A. Its direct current resistance (DCR) is specified as 25 mOhm, ensuring low power loss during operation.
