CM1430-06DE

Overview

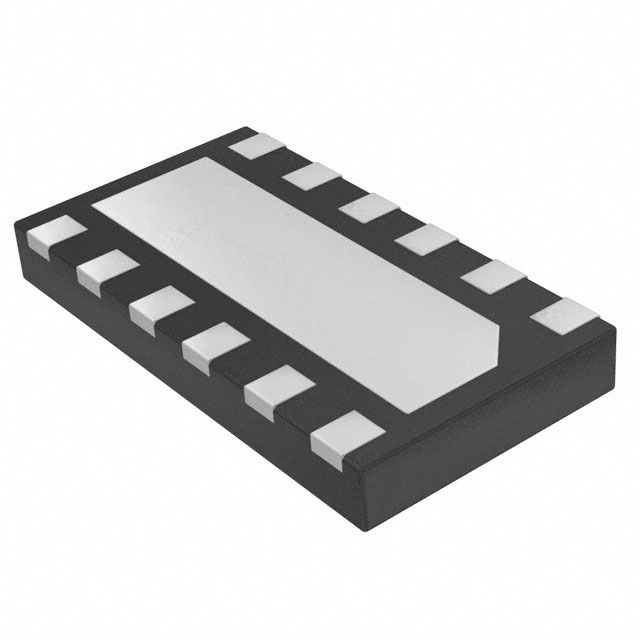

The CM1430-06DE is a six-channel EMI filter circuit manufactured by onsemi, designed for LCD and camera applications. It integrates an RC (Pi) filter topology with ESD protection capabilities. The device features a cutoff frequency of 110 MHz, with each channel incorporating a resistance of 100 Ohms and capacitance of 8.5 pF. It utilizes SMD/SMT termination types and is housed in a WDFN-12 package. The component operates within a temperature range of -40°C to +85°C.

Feature Summary

• Integrates six channels of low-pass filtering with built-in electrostatic discharge protection
• Utilizes RC Pi-filter topology for effective electromagnetic interference suppression
• Compact surface-mount design suitable for space-constrained mobile and portable devices

Applications

• LCD display interface protection
• Camera module signal line filtering
• Mobile phone internal bus protection

Procurement Notes

Verify the specific datasheet version as supply status may vary. Confirm package dimensions and pinout compatibility with your PCB layout before integration. Ensure environmental compliance requirements match current RoHS standards. Check for obsolescence notices or lifecycle changes directly from onsemi documentation prior to finalizing procurement plans.

Selection Notes

Select this component when six-channel simultaneous filtering and ESD protection are required for high-speed digital interfaces. Compare channel count and parasitic capacitance against alternatives like the CM1631 series if higher channel density is needed. Verify that the 100 Ohm impedance matches the target transmission line characteristics for optimal signal integrity.

Part Context

This part belongs to onsemi's family of LCD and camera EMI filters. It shares functional similarities with the CM1431 and CM1631 series but differs in channel count and package configuration. These components are specifically engineered to protect sensitive data lines in consumer electronics from noise and static discharge events.

Replacement Considerations

Public confirmed substitute part numbers: None identified.
