Product Detailed Parameters
- Description：FILTER RC(PI) 100 OHMS ESD SMD
- Series：-
- Mfr：onsemi
- Package：Tape & Reel (TR),Bulk
- Type：Low Pass
- Filter Order：2nd
- Technology：RC (Pi)
- Number of Channels：6
- Center / Cutoff Frequency：200MHz (Cutoff)
- Attenuation Value：-25dB @ 800MHz ~ 6GHz
- Resistance - Channel (Ohms)：100
- Values：R = 100Ohms, C = 8.5pF
- ESD Protection：Yes
- Operating Temperature：-40°C ~ 85°C
- Applications：Data Lines for Mobile Devices
- Voltage - Rated：-
- Mounting Type：Surface Mount
- Package / Case：12-UFDFN Exposed Pad
- Size / Dimension：0.098" L x 0.047" W (2.50mm x 1.20mm)
- Height：0.022" (0.55mm)
- Current：-
- Grade：-
- Qualification：-
Download product information
Overview

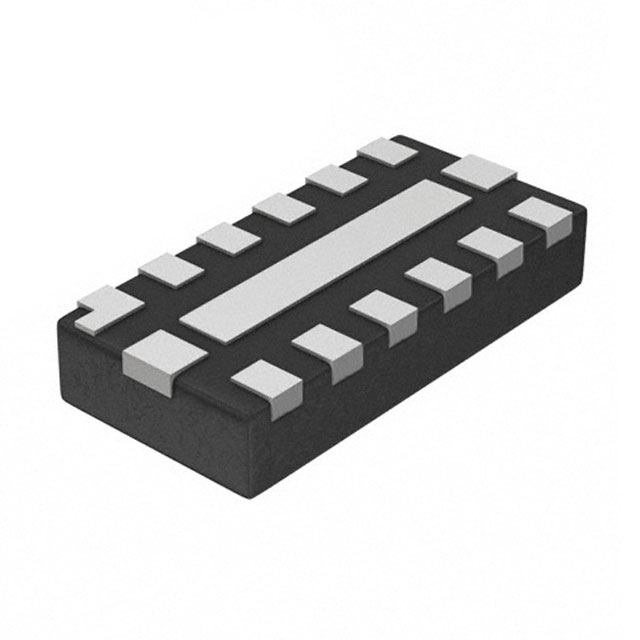

The CM1620-06DE is a six-channel EMI filter array with integrated electrostatic discharge (ESD) protection, designed for high-speed serial interfaces. It utilizes a Pi-style capacitor-resistor-capacitor (C-R-C) network to provide attenuation greater than -25dB at 1GHz. The device offers ±15kV IEC 61000-4-2 Level 4 contact discharge and ±30kV HBM protection per channel. Packaged in a lead-free NuDFN format, the 12-lead variant measures 2.5mm x 1.20mm x 0.50mm with a 0.40mm lead pitch.
Feature Summary
- Integrates six channels of EMI filtering with built-in ESD protection
- Employs Pi-style C-R-C network topology for signal integrity
- Provides robust ±15kV contact discharge protection per channel
Applications
- LCD and camera data lines in mobile handsets
- I/O port protection for mobile devices and notebooks
- EMI filtering for data ports in cell phones and PDAs
Procurement Notes
Verify component authenticity through authorized onsemi distributors or direct manufacturer channels. Confirm package markings and datasheet revision levels match the specific order requirements. Ensure storage conditions comply with moisture sensitivity level specifications to maintain reliability before assembly.
Selection Notes
Select this component when designing circuits requiring simultaneous EMI suppression and ESD protection for multiple high-speed data lines. The low-profile NuDFN package suits space-constrained portable electronics. Evaluate thermal management and soldering profiles against the specified lead pitch and package dimensions during PCB layout.
Part Context
This component belongs to onsemi’s portfolio of passive protection devices aimed at enhancing signal integrity in consumer electronics. It addresses the growing demand for compact solutions that protect sensitive interface lines from electromagnetic interference and static discharge events in handheld devices.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing circuit designs if considering alternative manufacturers.
