CM1621-06DE

Overview

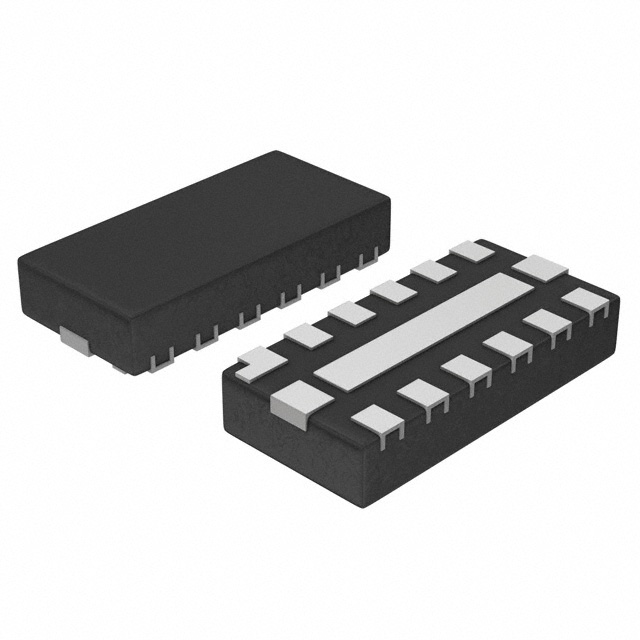

The CM1621-06DE is a six-channel RC filter integrated circuit designed for EMI suppression and electrostatic discharge (ESD) protection in high-speed data lines. It incorporates a Pi-style capacitor-resistor-capacitor network structure within each channel to attenuate electromagnetic interference across the frequency range of 800 MHz to 2.7 GHz, providing approximately 35 dB attenuation. The device features an integrated ESD protection mechanism rated at 15 kV contact discharge and 8 kV air gap discharge, ensuring robust defense against transient voltage events. Operating within a temperature range of -40°C to +85°C, it utilizes a compact UDFN package to minimize board space consumption while maintaining signal integrity for sensitive mobile and portable electronic applications.

Feature Summary

• Integrates six independent channels of EMI filtering with built-in ESD protection capabilities
• Utilizes a Pi-style C-R-C network topology for effective noise attenuation in data lines
• Provides robust electrostatic discharge protection meeting IEC 61000-4-2 standards
• Designed for compact surface-mount implementation in space-constrained mobile devices

Applications

• Data line protection for mobile handsets and smartphones
• EMI filtering for LCD and camera interfaces in portable electronics
• Signal integrity enhancement for notebook computers and PDAs
• Protection for high-speed data ports in consumer communication devices

Procurement Notes

Verify the specific ordering suffix and package variant during procurement to ensure compatibility with your design requirements. Confirm that the component meets the required ESD performance levels for your target application environment. Check the datasheet for absolute maximum ratings to prevent operational damage. Ensure proper handling procedures are followed due to the sensitivity of the internal protection structures. Validate supply chain authenticity through authorized distributors to guarantee product reliability.

Selection Notes

Select this component when designing circuits requiring simultaneous EMI suppression and ESD protection for multiple data lines in a minimal footprint. It is suitable for applications where signal integrity must be maintained in the presence of high-frequency noise while protecting against static discharge events. Consider the operating temperature range and package dimensions to ensure fit within the mechanical constraints of the final product. Evaluate the attenuation characteristics against the specific frequency spectrum of the interfering signals present in the system.

Part Context

This component belongs to onsemi's portfolio of passive and active filter solutions designed for signal conditioning and protection. It addresses the growing demand for compact, multi-functional protection devices in increasingly dense electronic assemblies. The integration of filtering and ESD protection into a single package reduces bill-of-materials complexity and simplifies layout processes for engineers developing next-generation mobile and portable electronic devices.

Replacement Considerations

Consult official onsemi documentation for verified substitute part numbers before implementation. Ensure any replacement maintains equivalent channel count, attenuation characteristics, and ESD protection ratings. Verify package compatibility and pinout alignment to avoid redesign efforts. Confirm that alternative components meet the same environmental and electrical specifications required by the original design.

FAQ

What is the attenuation performance of the CM1621-06DE?

The device provides approximately 35 dB of attenuation within the frequency range of 800 MHz to 2.7 GHz.

Does the CM1621-06DE include ESD protection?

Yes, each of the six channels integrates ESD protection capable of withstanding 15 kV contact discharge and 8 kV air gap discharge.

What type of filter network does the CM1621-06DE use?

It employs a Pi-style capacitor-resistor-capacitor (C-R-C) network configuration for effective EMI filtering.
