CM1692-06DE

Overview

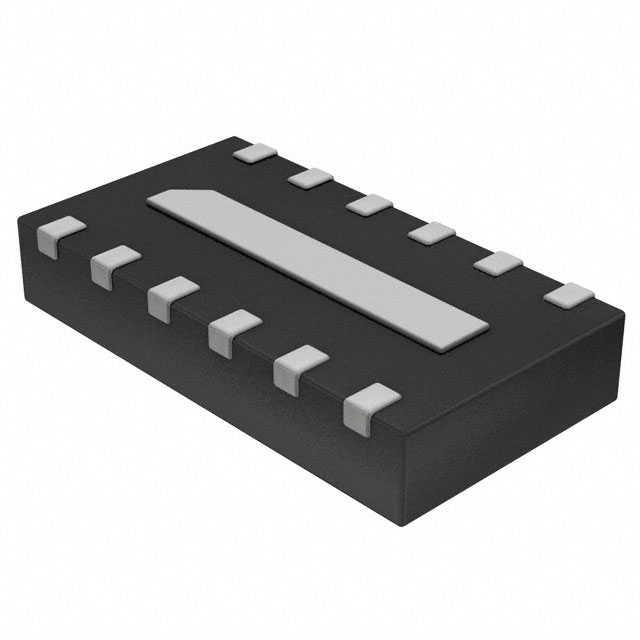

The CM1692-06DE is a sixth-order LC (Pi) EMI filter designed for surface-mount applications. It integrates inductance and capacitance values of 17 nH and 11.8 pF respectively within a compact 12-UFDFN Exposed Pad package. This component provides effective attenuation for high-frequency noise, supporting signal integrity in sensitive electronic circuits.

Feature Summary

• Integrates passive LC components into a single surface-mount device
• Provides multi-stage low-pass filtering for EMI suppression
• Designed for high-density PCB layouts with exposed pad thermal management

Applications

• LCD panel signal line protection
• Camera interface circuit noise filtering
• High-speed data bus EMI suppression

Procurement Notes

Verify current manufacturing status as the part may be obsolete. Confirm availability through authorized distributors or check for valid replacement part numbers such as the EMI7206MUTAG if supply continuity is required. Ensure package compatibility matches design specifications.

Selection Notes

Select this component for applications requiring compact footprint and integrated filtering solutions. Evaluate the specific inductance and capacitance values against target frequency requirements. Consider the UFDFN package dimensions for spatial constraints and thermal dissipation needs in dense assemblies.

Part Context

This component belongs to onsemi’s Praetorian L-C filter family, specialized for LCD and camera interfaces. It addresses growing EMI challenges in digital video and imaging systems by combining multiple filter stages into a unified SMD solution, reducing board space compared to discrete components.

Replacement Considerations

The EMI7206MUTAG is listed as a similar substitute part number. Verify electrical parameters and pinout compatibility before substitution. Check official documentation for any functional differences or updated specifications between the original and replacement parts.
