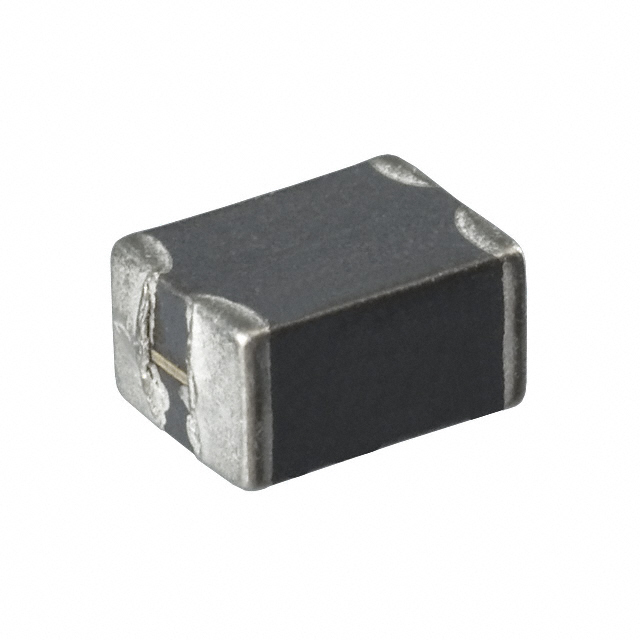

CM1812R600R-00

$0.19

Description：CMC 5A 2LN 60 OHM SMD
Series：CM
Mfr：Laird-Signal Integrity Products
Package：Tape & Reel (TR)

SKU:69d554cbb313 Category: Common Mode Chokes Brand: Laird-Signal Integrity Products

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 5A 2LN 60 OHM SMD
Series：CM
Mfr：Laird-Signal Integrity Products
Package：Tape & Reel (TR)
Filter Type：-
Number of Lines：2
Current Rating (Max)：5A
DC Resistance (DCR) (Max)：5mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.180" L x 0.120" W (4.57mm x 3.05mm)
Height (Max)：0.103" (2.61mm)
Package / Case：1812 (4532 Metric), 4 Leads
Inductance @ Frequency：-
Impedance @ Frequency：60 Ohms @ 100 MHz
Qualification：-
Grade：-

Download product information

CM1812R600R-00

Overview

The CM1812R600R-00 is a surface mount common mode choke manufactured by Laird-Signal Integrity Products. It features two lines with an impedance of 60 Ohms at 100 MHz and a maximum DC resistance of 5 milliohms. The component supports a rated current of 5A and utilizes a 1812 (4532 metric) package with four leads. Its physical dimensions are 0.180 inches in length, 0.120 inches in width, and a maximum height of 0.103 inches.

Feature Summary

Provides common mode noise suppression for power line applications
Features low DC resistance to minimize signal loss
Designed for surface mount assembly processes

Applications

Power line filtering
Common mode noise suppression

Procurement Notes

Verify component authenticity through authorized channels due to discontinued status. Confirm RoHS compliance requirements as the part does not meet RoHS standards. Check lead compatibility with existing PCB footprints. Validate electrical parameters against design specifications before integration into production systems.

Selection Notes

Select this component for circuits requiring 5A current handling with specific 60 Ohm impedance characteristics. Ensure the 1812 package size fits available board space. Consider the vertical lead configuration for mounting orientation. Evaluate thermal performance within the -55°C to 125°C operating range during system design.

Part Context

This component belongs to the CM series of common mode chokes from Laird-Signal Integrity Products. It is designed for electromagnetic interference filtering in electronic systems. The product is currently classified as obsolete or end-of-life by the manufacturer.
