Product Detailed Parameters
- Description：IGBT MOD 600V 200A 590W
- Series：IGBTMOD™
- Mfr：Powerex Inc.
- Package：Bulk
- IGBT Type：Trench
- Configuration：Half Bridge
- Vce(on) (Max) @ Vge, Ic：2.2V @ 15V, 200A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：600 V
- Current - Collector (Ic) (Max)：200 A
- Power - Max：590 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：54 nF @ 10 V
Download product information
Overview

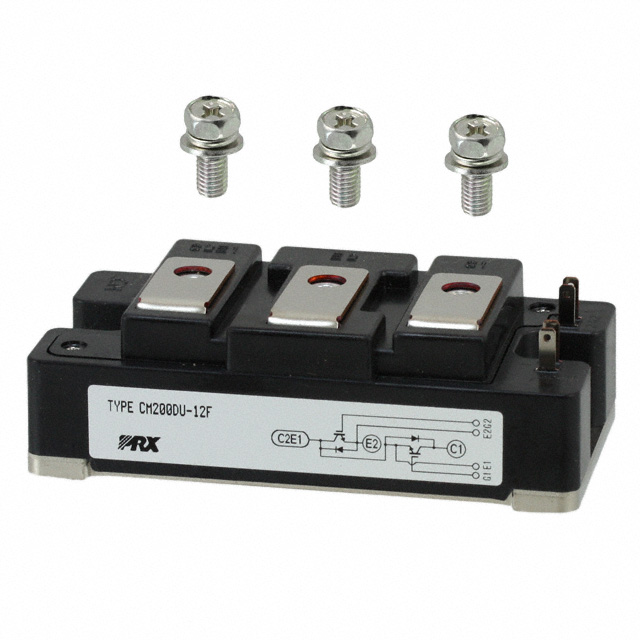

The CM200DU-12F is a dual IGBT module manufactured by Powerex Inc., designed for high-power switching applications. It features two insulated gate bipolar transistors in a half-bridge configuration, each paired with a reverse-connected super-fast recovery free-wheel diode. The device has a maximum collector-emitter voltage of 1200 V and a continuous collector current rating of 200 A. Components are isolated from the heat-sinking baseplate to simplify system assembly and thermal management.
Feature Summary
- Half-bridge configuration with integrated super-fast recovery free-wheel diodes
- Isolated baseplate design for simplified thermal management
- Low drive power requirements
- Low saturation voltage characteristics
Applications
- AC motor control systems
- Uninterruptible power supplies (UPS)
- Battery-powered supply units
Procurement Notes
Verify the specific suffix 'F' against official Powerex documentation to confirm pinout, terminal type, or packaging variations compared to standard DU-series modules. Ensure the component matches the required 1200V/200A specifications for the target application before procurement.
Selection Notes
Select this module for applications requiring robust half-bridge switching capabilities at 1200V. Consider the thermal resistance and mounting requirements associated with the flange-mount package. Verify compatibility with gate drive circuits due to the specific drive power characteristics of the NF/DU series architecture.
Part Context
This component belongs to the Powerex IGBTMOD DU-series, which provides dual transistor solutions for medium to high-power inverters. It is functionally similar to other 1200V half-bridge modules like the CM300DU-12H, differing primarily in current ratings and specific terminal configurations defined by the manufacturer's suffix codes.
Replacement Considerations
Potential substitutes include the CM300DU-12H or CM400DU-12H for higher current margins, provided thermal and mechanical constraints allow. Cross-reference with Mitsubishi Electric equivalents such as the CM200DY-12NF, ensuring voltage and current ratings meet or exceed the original design requirements.
