CM250S32.000KAZFT

Crystals Overview

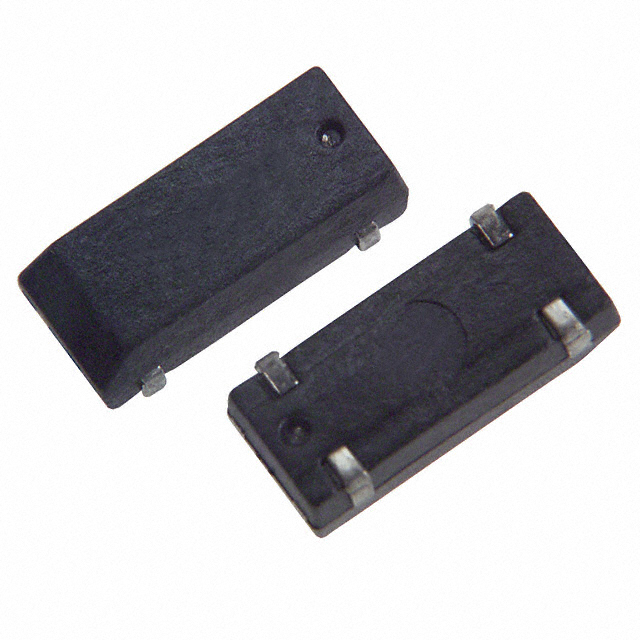

The CM250S32.000KAZFT is a surface-mount tuning fork crystal manufactured by Citizen Finedevice Co Ltd. It operates at a nominal frequency of 32 kHz with a frequency tolerance of ±30 ppm. The component features a load capacitance of 12.5 pF and an equivalent series resistance (ESR) of 50 kOhms. It is housed in a 4-SOJ package with a 5.50 mm pitch, designed for precise timekeeping applications requiring stable oscillation.

Crystals Feature Summary

• Tuning fork crystal structure optimized for low power consumption
• Surface mount 4-SOJ package design for automated assembly
• Stable frequency output suitable for real-time clock circuits

Crystals Applications

• Real-time clock modules
• Wearable electronic devices
• Smart home sensors

Crystals Procurement Notes

Verify the specific ordering suffix to ensure compliance with required environmental standards and tape/reel packaging specifications. Confirm that the load capacitance matches the oscillator circuit design requirements. Check for RoHS compliance status if restricted substances are prohibited in the target application environment.

Crystals Selection Notes

Select this component when a 32 kHz reference signal is required for timekeeping functions. Ensure the system oscillator supports the specified 12.5 pF load capacitance. Consider the ±30 ppm tolerance against the overall system accuracy requirements. Evaluate the 4-SOJ footprint compatibility with the printed circuit board layout constraints.

Crystals Part Context

This part belongs to the CM250S family of tuning fork crystals from Citizen Finedevice. These components are engineered for compact electronics where space and power efficiency are critical. The family offers various frequency options while maintaining consistent package dimensions and electrical characteristics for interchangeable design solutions.

Crystals Replacement Considerations

Direct substitutes include other CM250S series variants with identical 32 kHz frequency and 4-SOJ packaging. Verify equivalent ESR and load capacitance values before substitution. Cross-reference pinout configurations to ensure mechanical and electrical compatibility.
