Product Detailed Parameters
- Description：CMC 5A 4LN 150 OHM SMD
- Series：CM
- Mfr：Laird-Signal Integrity Products
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power Line
- Number of Lines：4
- Current Rating (Max)：5A
- DC Resistance (DCR) (Max)：20mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-55°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.275" L x 0.265" W (6.99mm x 6.73mm)
- Height (Max)：0.331" (8.40mm)
- Package / Case：Vertical, 8 Flat Lead
- Inductance @ Frequency：-
- Impedance @ Frequency：150 Ohms @ 100 MHz
- Qualification：-
- Grade：-
Download product information
Overview

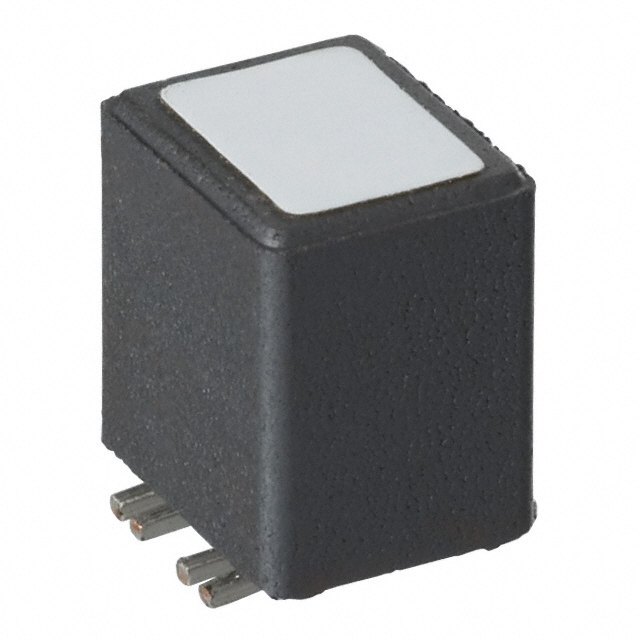

The CM2722R151R-00 is a four-line common mode choke manufactured by Laird-Signal Integrity Products. It features a surface mount design with vertical orientation and eight flat leads. The component provides an impedance of 150 Ohms at 100 MHz and supports a maximum rated current of 5A. Its maximum DC resistance (DCR) is 20 milliohms. The physical dimensions are 6.99mm in length, 6.73mm in width, and up to 10.31mm in height. It operates within a temperature range of -55°C to 125°C.
Feature Summary
- Four-line configuration for simultaneous noise suppression across multiple power lines
- High current handling capability suitable for demanding power applications
- Vertical surface mount package optimized for board space efficiency
Applications
- Power line filtering in industrial equipment
- Noise suppression in server and storage systems
- EMI mitigation in telecommunications infrastructure
Procurement Notes
Verify the specific suffix requirement during procurement, as the -00 designation indicates a non-RoHS compliant version. Confirm availability status, as this part number may be discontinued or subject to long lead times. Ensure the selected replacement matches the electrical specifications and physical footprint if sourcing alternatives due to end-of-life status.
Selection Notes
Select this component when multi-line power filtering is required in compact designs. The 5A rating suits high-power applications, while the 150 Ohm impedance targets specific frequency ranges. Consider the vertical package profile for assembly constraints. Verify thermal management requirements given the operating temperature range and current load capabilities.
Part Context
This component belongs to the CM series of common mode chokes from Laird-Signal Integrity Products. The series offers various line counts and impedance values for power line filtering. The CM2722R151R-00 specifically addresses four-line applications with moderate impedance characteristics.
Replacement Considerations
Direct substitute: CM2722R151R-10.
