CM2722R800R-10

$2.07

Description：CMC 5A 4LN 80 OHM SMD
Series：CM
Mfr：Laird-Signal Integrity Products
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:a9afe38de700 Category: Common Mode Chokes Brand: Laird-Signal Integrity Products

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 5A 4LN 80 OHM SMD
Series：CM
Mfr：Laird-Signal Integrity Products
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Power Line
Number of Lines：4
Current Rating (Max)：5A
DC Resistance (DCR) (Max)：20mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.275" L x 0.265" W (6.99mm x 6.73mm)
Height (Max)：0.197" (5.00mm)
Package / Case：Vertical, 8 Flat Lead
Inductance @ Frequency：-
Impedance @ Frequency：80 Ohms @ 100 MHz
Qualification：-
Grade：-

Download product information

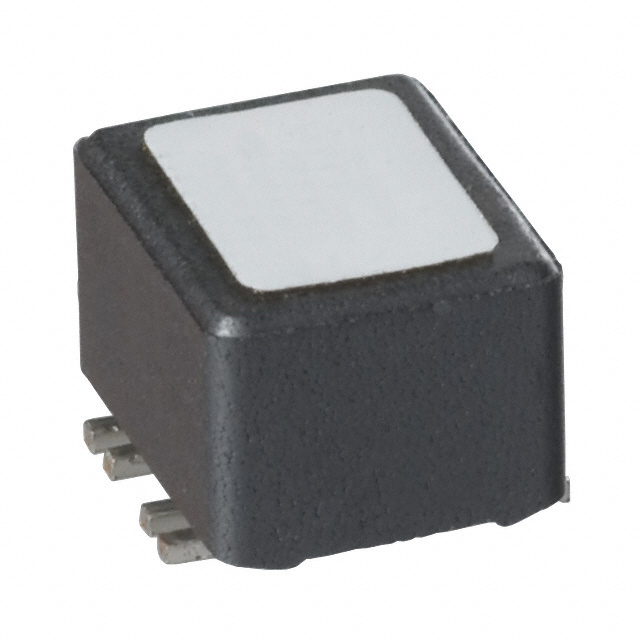

CM2722R800R-10

Overview

The CM2722R800R-10 is a surface mount common mode choke from the Laird CM series, designed for power line filtering. It features four lines and provides an impedance of 80 Ohms at 100 MHz. The component supports a maximum rated current of 5A with a maximum DC resistance of 20 milliohms. It utilizes a vertical package with eight flat leads and measures 6.99mm in length, 6.73mm in width, and 5.00mm in height. The device operates within a temperature range of -55°C to 125°C.

Feature Summary

Provides common mode noise suppression for multi-line power circuits
Supports high current handling up to 5A with low DC resistance
Designed for surface mount assembly on printed circuit boards

Applications

Power supply input filtering
Multi-line signal integrity protection
EMI suppression in electronic equipment

Procurement Notes

Verify the specific suffix designation during procurement, as it may indicate manufacturing revisions or compliance updates distinct from previous versions. Confirm that the selected component matches the required electrical specifications for the target application. Ensure compatibility with existing board layouts and soldering processes before finalizing orders.

Selection Notes

Select this component when four-line common mode filtering is required for power applications carrying up to 5A. The 80 Ohm impedance at 100 MHz targets specific noise frequencies. Consider the physical dimensions and vertical lead configuration for space-constrained designs requiring robust thermal and electrical performance.

Part Context

This component belongs to the Laird CM series of common mode chokes, which are engineered for signal integrity and EMI reduction. The series offers various line counts and impedance values tailored for different power and data line requirements. The CM2722R800R-10 specifically addresses needs for four-line configurations with moderate impedance characteristics.
