Product Detailed Parameters
- Description：IGBT MOD 1200V 300A 1130W
- Series：IGBTMOD™
- Mfr：Powerex Inc.
- Package：Bulk
- IGBT Type：-
- Configuration：Half Bridge
- Vce(on) (Max) @ Vge, Ic：2.5V @ 15V, 300A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：300 A
- Power - Max：1130 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：70 nF @ 10 V
Download product information
Overview

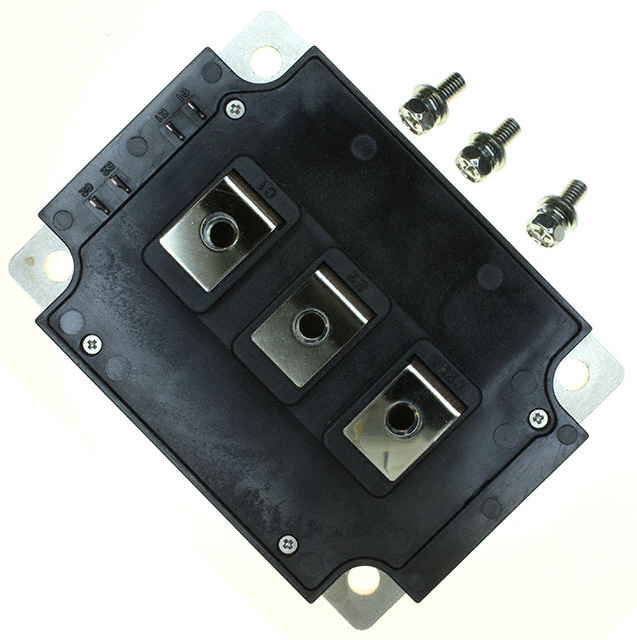

The CM300DY-24NF is a half-bridge IGBT module manufactured by Powerex Inc. It features a maximum collector-emitter breakdown voltage of 1200 V and a continuous collector current rating of 300 A. The device has a maximum power dissipation of 650 W and an on-state collector-emitter voltage of 2.5 V at 15 V gate drive and 300 A collector current. Input capacitance is specified as 23 nF at 10 V, with a maximum collector cutoff current of 1 mA. Operating temperature ranges from -40°C to 150°C TJ, and it utilizes chassis mount packaging.
Feature Summary
- Half-bridge configuration integrating two elements with built-in diodes for efficient power switching.
- Chassis mount design providing robust mechanical stability and thermal management capabilities.
- Silicon-based N-channel construction optimized for high-power industrial applications.
Applications
- Industrial motor drives and variable frequency drives
- Uninterruptible power supply (UPS) systems
- High-frequency welding equipment
Procurement Notes
Verify the specific manufacturer source, as this part number appears in databases linked to both Powerex and Mitsubishi Electric. Confirm availability status, as some listings indicate discontinued or special-order status. Ensure the datasheet matches the required electrical parameters before procurement.
Selection Notes
Select this module for applications requiring 1200 V blocking capability and 300 A current handling in a compact half-bridge topology. Verify that the cooling system can dissipate up to 650 W of power. Check compatibility with standard gate drive voltages of 15 V for optimal switching performance.
Part Context
This component belongs to the CM series of insulated gate bipolar transistor modules. It shares the DY suffix designation, indicating a half-bridge configuration with integrated anti-parallel diodes. The series is designed for general-purpose power conversion and control applications.
Replacement Considerations
Cross-reference with CM300DY-24T#330G from Mitsubishi Electric, which shares similar electrical ratings. Verify pinout compatibility and thermal characteristics when substituting between manufacturers.
