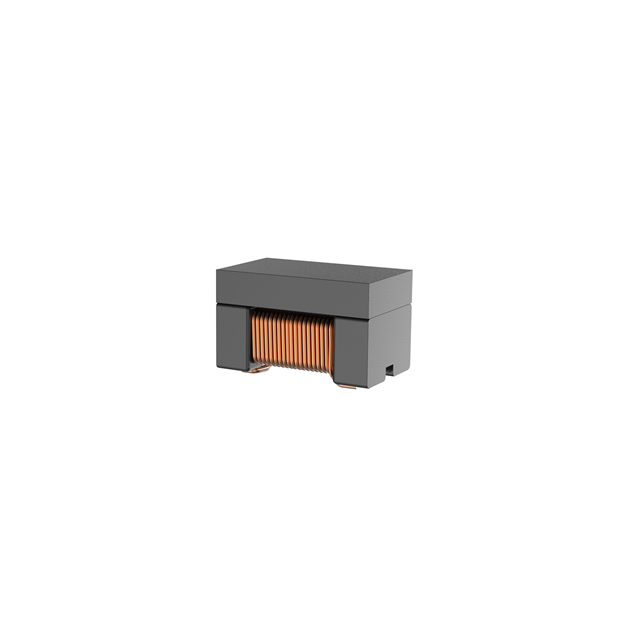

CM3216A-600

$0.20

Description：CMC 60UH 200MA 2LN SMD
Series：-
Mfr：Mentech Technology USA Inc.
Package：Tape & Reel (TR)

SKU:b5fcb84865c9 Category: Common Mode Chokes Brand: Mentech Technology USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 60UH 200MA 2LN SMD
Series：-
Mfr：Mentech Technology USA Inc.
Package：Tape & Reel (TR)
Filter Type：-
Number of Lines：2
Current Rating (Max)：200mA
DC Resistance (DCR) (Max)：1.7Ohm
Voltage Rating - DC：50V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 85°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.134" L x 0.063" W (3.40mm x 1.60mm)
Height (Max)：0.079" (2.00mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：60 µH @ 100 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

CM3216A-600

Overview

The CM3216A-600 is a surface-mount common mode choke manufactured by Mentech Technology USA Inc. It features an inductance of 60 µH at 100 kHz and supports a maximum current rating of 200 mA. The component has a maximum DC resistance (DCR) of 1.7 Ohms and a voltage rating of 50 V DC. It operates within a temperature range of -40°C to 85°C.

Feature Summary

Provides common mode noise suppression for two-line circuits
Designed for surface mount technology integration
RoHS compliant construction

Applications

Signal line filtering in electronic devices
Noise suppression in data transmission interfaces
EMI reduction in compact consumer electronics

Procurement Notes

Verify the manufacturer designation as Mentech Technology USA Inc. when sourcing this component. Confirm that the part number CM3216A-600 matches the required specifications, including the 60 µH inductance and 200 mA current rating. Ensure compliance with RoHS standards if required by your assembly process. Cross-reference datasheets to validate the 1.7 Ohm DCR and 50 V DC rating before procurement.

Selection Notes

Select this component for applications requiring low-current common mode chokes in space-constrained designs. The 200 mA rating suits signal lines rather than power delivery. The SMD package facilitates automated assembly. Verify that the 1.7 Ohm DCR meets the circuit's voltage drop requirements. Ensure the operating temperature range covers the intended environmental conditions.

Part Context

This component belongs to the common mode choke category, specifically designed for electromagnetic interference suppression. It is part of a series of passive components used in signal integrity management. The CM3216A-600 variant offers specific electrical characteristics tailored for low-power signal lines.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official manufacturer channels or authorized distributors for verified alternatives.
