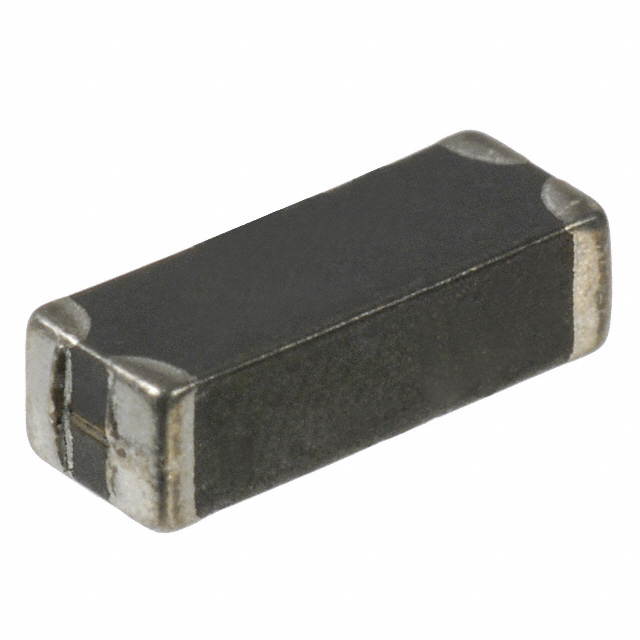

CM3312R111R-10

Description：CMC 5A 2LN 110 OHM SMD
Series：CM
Mfr：Laird-Signal Integrity Products
Package：Tape & Reel (TR)

SKU:ab4f7ae4b835 Category: Common Mode Chokes Brand: Laird-Signal Integrity Products

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 5A 2LN 110 OHM SMD
Series：CM
Mfr：Laird-Signal Integrity Products
Package：Tape & Reel (TR)
Filter Type：Power, Signal Line
Number of Lines：2
Current Rating (Max)：5A
DC Resistance (DCR) (Max)：5mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.335" L x 0.120" W (8.50mm x 3.05mm)
Height (Max)：0.103" (2.61mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：110 Ohms @ 100 MHz
Qualification：-
Grade：-

Download product information

CM3312R111R-10

Overview

The Laird-Signal Integrity Products CM3312R111R-10 is a surface-mount monolithic common mode choke designed for power and signal line filtering. It features a 3312 (8531 metric) package with dimensions of 8.5mm x 3.1mm. The component provides an impedance of 110 Ohms at 100 MHz and supports a maximum rated current of 5A. Its DC resistance is specified at 5 milliohms, ensuring minimal insertion loss in high-current applications.

Feature Summary

Monolithic construction for robust mechanical stability
High current handling capability suitable for power rails
Low DC resistance to minimize voltage drop

Applications

Power rail filtering in high-current circuits
Signal line noise suppression
Common mode interference mitigation

Procurement Notes

Verify the specific manufacturer part number against official datasheets to confirm electrical parameters such as impedance and current rating. Ensure compatibility with surface mount assembly processes and check for RoHS compliance status if required by design specifications.

Selection Notes

Select this component when high current capacity is required alongside effective common mode noise suppression. The low DC resistance makes it suitable for power integrity applications where voltage drop must be minimized. Verify that the 3312 package size fits the available PCB footprint constraints.

Part Context

This component belongs to Laird-Signal Integrity Products' range of EMI filters and chokes. It is categorized under common mode chokes, distinct from single-line ferrite beads. The product series focuses on providing reliable noise attenuation for both power and signal lines in compact surface-mount formats.
