Product Detailed Parameters
- Description：CMC 4A 2LN 40 OHM SMD
- Series：CM
- Mfr：Laird-Signal Integrity Products
- Package：Tape & Reel (TR)
- Filter Type：Power, Signal Line
- Number of Lines：2
- Current Rating (Max)：4A
- DC Resistance (DCR) (Max)：30mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.335" L x 0.220" W (8.50mm x 5.60mm)
- Height (Max)：0.093" (2.35mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：40 Ohms @ 100 MHz
- Qualification：-
- Grade：-
Download product information
Overview

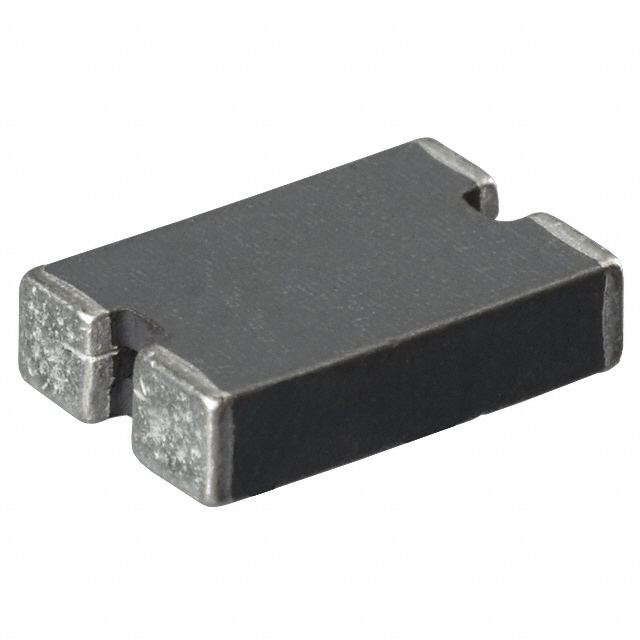

The CM3322P400R-10 is a surface-mount common mode choke manufactured by Laird-Signal Integrity Products. It features a monolithic body with dimensions of 0.335 inches in length and 0.220 inches in width, reaching a maximum height of 0.093 inches. The component provides an impedance of 40 Ohms at 100 MHz and supports a rated current of 4 Amperes. It operates within a temperature range of -40°C to 125°C.
Feature Summary
- Monolithic construction for compact surface-mount integration
- High current handling capability suitable for power line filtering
- Designed for effective common mode noise suppression
Applications
- Power supply input filtering
- Data line noise suppression
- General EMI mitigation in electronic circuits
Procurement Notes
Verify the specific manufacturer datasheet for detailed electrical characteristics and mechanical drawings. Confirm that the component meets all relevant regulatory standards required for your target market. Ensure compatibility with your assembly process regarding mounting type and thermal requirements before finalizing procurement decisions.
Selection Notes
Select this component when a robust solution for high-current common mode noise reduction is required in a small form factor. The 4A rating makes it suitable for power applications where standard signal-line chokes would saturate. Consider the 40 Ohm impedance specification relative to the noise frequencies present in your specific circuit design.
Part Context
This part belongs to Laird-Signal Integrity Products' lineup of passive components designed for electromagnetic interference filtering. Common mode chokes in this series are engineered to attenuate unwanted differential and common mode signals without affecting the desired signal integrity.
FAQ
What is the physical package size of the CM3322P400R-10?
The component has a surface-mount footprint measuring 0.335 inches in length and 0.220 inches in width.
What is the maximum operating temperature for this choke?
The device is rated for operation in environments ranging from -40°C to 125°C.
