CM3822R201R-10

Overview

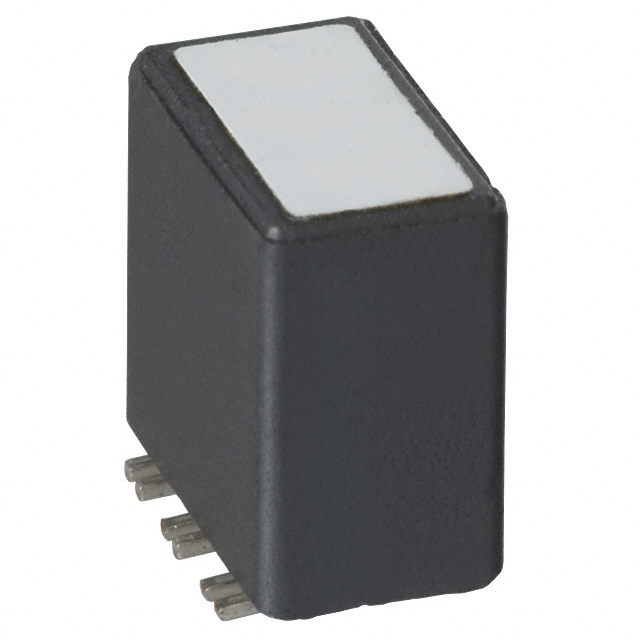

The CM3822R201R-10 is a surface-mount common mode choke from the Laird CM series, designed for power line filtering. It features six lines with an impedance of 200 Ohms at 100 MHz and a maximum DC resistance of 20 milliohms. The component supports a rated current of 5 Amperes and operates within a temperature range of -40°C to +125°C. Its vertical package measures 9.78 mm in length, 6 mm in width, and up to 9.53 mm in height.

Feature Summary

• Six-line configuration for multi-phase power applications
• Vertical surface-mount footprint for space-constrained designs
• Low DC resistance to minimize power loss
• High current handling capability

Applications

• Power line EMI suppression
• Multi-phase power distribution systems
• Industrial equipment filtering

Procurement Notes

Verify RoHS compliance status as sources indicate conflicting information regarding REACH and RoHS3 adherence. Confirm the specific suffix designation against the manufacturer's official part number guide to ensure correct impedance and current ratings. Check for active manufacturing status or obsolescence notices before finalizing procurement plans.

Selection Notes

Select this component for applications requiring high-current common mode noise suppression on power lines. The six-line design suits multi-phase systems where compact vertical mounting is necessary. Ensure the 5A rating and 200 Ohm impedance at 100 MHz align with the specific electromagnetic interference requirements of the target circuit.

Part Context

This component belongs to the Laird CM series of signal integrity products. It is categorized as a power line filter intended for surface-mount assembly. The part is manufactured by Laird-Signal Integrity Products and is available in reel packaging for automated insertion processes.

Replacement Considerations

Direct substitute: CM3822R201R-00.
