Product Detailed Parameters

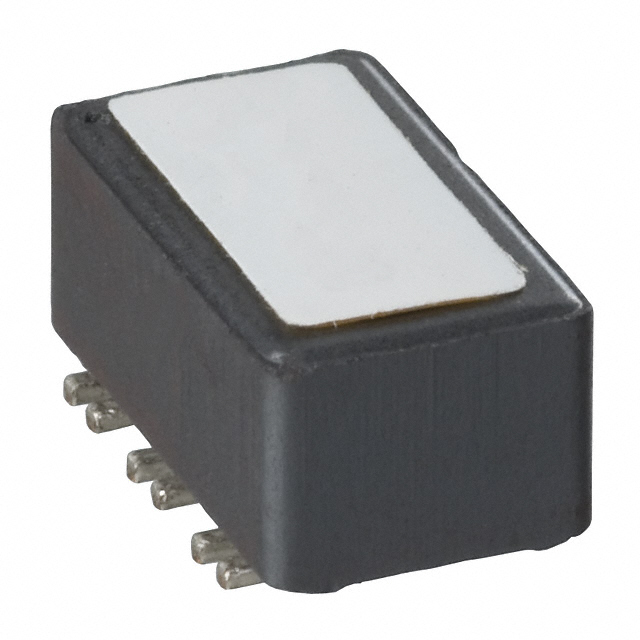

- Description：CMC 5A 6LN 80 OHM SMD
- Series：CM
- Mfr：Laird-Signal Integrity Products
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power Line
- Number of Lines：6
- Current Rating (Max)：5A
- DC Resistance (DCR) (Max)：20mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.385" L x 0.265" W (9.78mm x 6.73mm)
- Height (Max)：0.197" (5.00mm)
- Package / Case：Vertical, 12 Flat Lead
- Inductance @ Frequency：-
- Impedance @ Frequency：80 Ohms @ 100 MHz
- Qualification：-
- Grade：-
Download product information
Overview
The CM3822R800R-10 is a surface-mount common mode choke from the Laird CM series, designed for power line filtering. It features six lines with an impedance of 80 Ohms at 100 MHz and a maximum DC current rating of 5 Amperes. The component has a maximum DC resistance (DCR) of 20 milliohms. It operates within a temperature range of -40°C to +125°C and utilizes a vertical package with flat leads.
Feature Summary
- Provides common mode noise suppression for multi-line power circuits
- Supports high current applications up to 5 Amperes
- Designed for surface mount PCB integration
Applications
- Power line filtering in electronic systems
- EMI suppression for multi-channel power distribution
- Signal integrity protection in industrial equipment
Procurement Notes
Verify RoHS compliance status as sources indicate non-compliance for similar legacy variants. Confirm lead times due to potential supply chain variability. Ensure the specific suffix matches design requirements. Check for direct replacement availability if the primary part is discontinued or limited.
Selection Notes
Select this component for applications requiring six-channel common mode filtering with high current capacity. The low DCR minimizes power loss. Verify footprint compatibility with the vertical 12-flat-lead package. Consider thermal limits when operating near the maximum rated current.
Part Context
This component belongs to the Laird CM series of signal integrity products. It is manufactured by Laird-Signal Integrity Products. The series includes various configurations for different line counts and impedance values. It serves as an EMI filter array for modern electronic assemblies.
Replacement Considerations
Direct substitutes include CM3822R800R-00. Verify electrical parameters and physical dimensions before substitution. Ensure the replacement meets all regulatory and environmental standards required by the final application.
