CM422SG472N

$1.48

Description：CMC 300MA 2LN SMD
Series：-
Mfr：Mentech Technology USA Inc.
Package：Tape & Reel (TR)

SKU:a7016dbead2f Category: Common Mode Chokes Brand: Mentech Technology USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 300MA 2LN SMD
Series：-
Mfr：Mentech Technology USA Inc.
Package：Tape & Reel (TR)
Filter Type：Signal Line
Number of Lines：2
Current Rating (Max)：300mA
DC Resistance (DCR) (Max)：900mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.374" L x 0.252" W (9.50mm x 6.40mm)
Height (Max)：0.197" (5.00mm)
Package / Case：-
Inductance @ Frequency：-
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

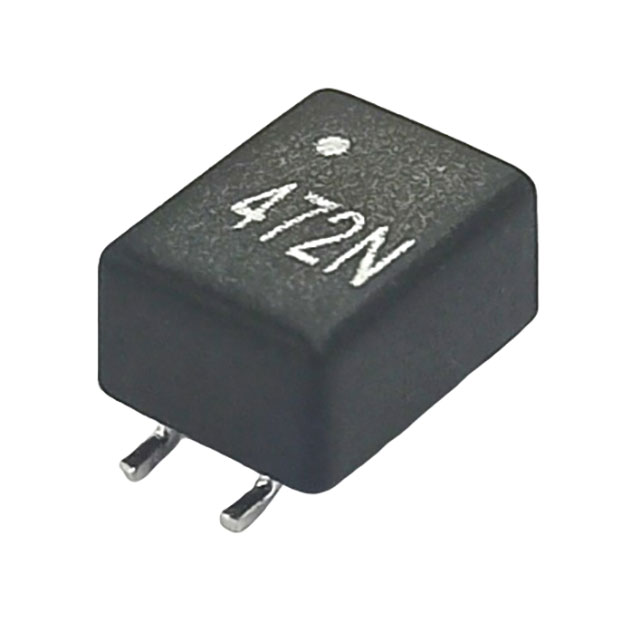

CM422SG472N

Overview

The CM422SG472N is a two-line surface mount common mode choke manufactured by Mentech Technology USA Inc. It is designed for filtering high-frequency noise on signal lines in electronic circuits. The component operates within a temperature range of -40°C to 125°C and features a DC resistance (DCR) of 900mOhm with a current rating of 300mA. It is classified as an active electronic filter component suitable for compact surface mount applications.

Feature Summary

Surface mount construction for automated assembly
Two-line configuration for differential signal filtering
Wide operating temperature capability

Applications

High-frequency noise suppression on signal lines
Common mode interference reduction in electronic circuits

Procurement Notes

Verify the specific datasheet version for the CM422SG472N to confirm exact electrical tolerances and packaging details before procurement. Ensure compatibility with surface mount reflow soldering profiles. Confirm RoHS compliance status if required by your manufacturing standards. Cross-reference the manufacturer's official documentation for any recent design changes or obsolescence notices.

Selection Notes

Select this component when a low-profile, two-line common mode choke is required for surface mount PCB layouts. Consider the 300mA current rating and 900mOhm DCR for power loss and thermal management calculations. Verify that the -40°C to 125°C operating range meets the environmental requirements of the target application.

Part Context

Mentech Technology USA Inc. produces electronic components including transformers and inductors. The CM422SG472N belongs to their line of common mode chokes, which are passive filters used to suppress electromagnetic interference. This part is distinct from the company's optical transceiver products, focusing instead on magnetic components for circuit protection and signal integrity.

Replacement Considerations

Publicly confirmed substitute part numbers for the CM422SG472N were not identified in available documentation. Consult the manufacturer directly for qualified alternatives or cross-reference similar 2-line SMD common mode chokes with matching 300mA ratings and comparable impedance characteristics.
