Product Detailed Parameters
- Description：CMC 10A 4LN 130 OHM TH
- Series：CM
- Mfr：Laird-Signal Integrity Products
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：4
- Current Rating (Max)：10A
- DC Resistance (DCR) (Max)：10mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.448" L x 0.448" W (11.38mm x 11.38mm)
- Height (Max)：0.374" (9.50mm)
- Package / Case：Vertical, 8 PC Pin
- Inductance @ Frequency：-
- Impedance @ Frequency：130 Ohms @ 100 MHz
- Qualification：-
- Grade：-
Download product information
Overview

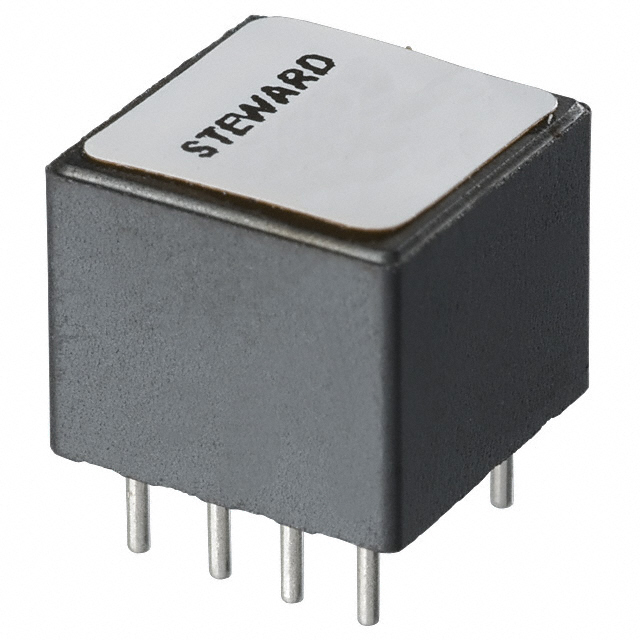

The CM4545Z131B-10 is a common mode filter choke from the Laird CM series, designed for power line applications. It features a through-hole mounting style with an impedance of 130 Ohms at a test frequency of 100 MHz. The component supports a maximum DC current of 10 A and has a maximum DC resistance of 10 mOhms. Operating within a temperature range of -40°C to +125°C, its physical dimensions are 11.38 mm in length, 11 mm in width, and 9.32 mm in height.
Feature Summary
- Provides high-current common mode filtering in a compact form factor
- Engineered for economical power line noise suppression
- Utilizes through-hole termination for PCB integration
Applications
- Power line EMI filtering
- Common mode noise suppression in electronic circuits
Procurement Notes
Verify the manufacturer designation, as some listings identify Qnity while others cite Laird-Signal Integrity Products. Confirm the specific package type and lead times directly with suppliers, as availability data varies across distributors. Ensure the component meets RoHS compliance requirements for your specific project needs before finalizing procurement.
Selection Notes
Select this component when a through-hole solution is required for high-current power lines. The 130 Ohm impedance at 100 MHz targets specific noise frequencies. Verify that the 10 A current rating and 10 mOhm DCR align with the circuit's electrical demands and thermal management capabilities.
Part Context
This part belongs to the Laird CM series of common mode chokes. The series is characterized by small form factors and high performance, offering economical solutions for common mode filtering. It serves as a specialized passive component within the broader category of inductors, chokes, and coils used for signal integrity and power conditioning.
Replacement Considerations
The CM4545Z131R-10 is a related variant within the same series. Differences may exist in physical dimensions or lead configuration. Verify compatibility with existing footprints and electrical specifications before substitution.
