Product Detailed Parameters
- Description：CMC 8A 6LN 200 OHM SMD
- Series：CM4732
- Mfr：Laird-Signal Integrity Products
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power Line
- Number of Lines：6
- Current Rating (Max)：8A
- DC Resistance (DCR) (Max)：10mOhm
- Voltage Rating - DC：30V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.470" L x 0.320" W (11.94mm x 8.00mm)
- Height (Max)：0.372" (9.45mm)
- Package / Case：Vertical, 12 Flat Lead
- Inductance @ Frequency：-
- Impedance @ Frequency：200 Ohms @ 100 MHz
- Qualification：-
- Grade：-
Download product information
Overview

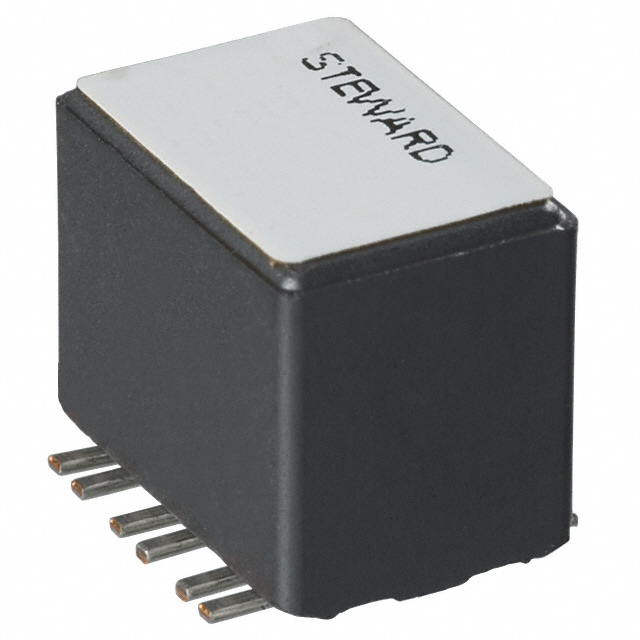

The CM4732V201R-10 is a six-line common mode choke manufactured by Laird-Signal Integrity Products. It features a surface mount design with vertical orientation and twelve flat leads. The component provides an impedance of 200 Ohms at 100 MHz and supports a maximum DC current rating of 8 Amperes. Its maximum DC resistance is 10 milliohms. The device operates within a temperature range of -55°C to 125°C. Physical dimensions are 11.94mm in length, 8.13mm in width, and up to 9.70mm in height.
Feature Summary
- Six-line configuration for simultaneous suppression across multiple signal paths
- High current handling capability suitable for power line applications
- Vertical surface mount package for compact PCB integration
Applications
- Power line filtering
- Signal line noise suppression
- Multi-channel data bus protection
Procurement Notes
Verify the specific suffix designation during procurement, as previous iterations like the -00 variant may differ in compliance status or manufacturing origin. Confirm RoHS compliance requirements against the latest datasheet specifications before finalizing orders. Ensure the selected supplier provides authentic components from Laird-Signal Integrity Products to guarantee performance reliability.
Selection Notes
Select this component when multi-line common mode noise reduction is required for high-current circuits. The 8A rating distinguishes it from lower-current signal-only chokes. Verify that the vertical lead form factor fits the available board space constraints. Consider the 200 Ohm impedance value relative to the target noise frequency spectrum to ensure effective attenuation without impacting desired signal integrity.
Part Context
This part belongs to the Laird CM series of common mode chokes, designed for robust EMI suppression in demanding electronic environments. The 4732V designation indicates specific physical sizing and lead configuration within the product family. It serves as a direct replacement for discontinued variants such as the CM4732V201R-00, maintaining identical electrical characteristics while potentially updating manufacturing standards.
Replacement Considerations
CM4732V201R-10 is the direct successor to the obsolete CM4732V201R-00. Both parts share identical electrical parameters and physical footprint, allowing for drop-in substitution in existing designs without circuit modification.
FAQ
What is the maximum DC current rating for this component?
The CM4732V201R-10 supports a maximum DC current of 8 Amperes.
How many lines does this common mode choke support?
It is a six-line component designed to filter six simultaneous channels.
