Product Detailed Parameters
- Description：CMC 5A 8LN 200 OHM SMD
- Series：CM
- Mfr：Laird-Signal Integrity Products
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power Line
- Number of Lines：8
- Current Rating (Max)：5A
- DC Resistance (DCR) (Max)：20mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.495" L x 0.265" W (12.57mm x 6.73mm)
- Height (Max)：0.406" (10.31mm)
- Package / Case：Vertical, 16 Flat Lead
- Inductance @ Frequency：-
- Impedance @ Frequency：200 Ohms @ 100 MHz
- Qualification：-
- Grade：-
Download product information
Overview

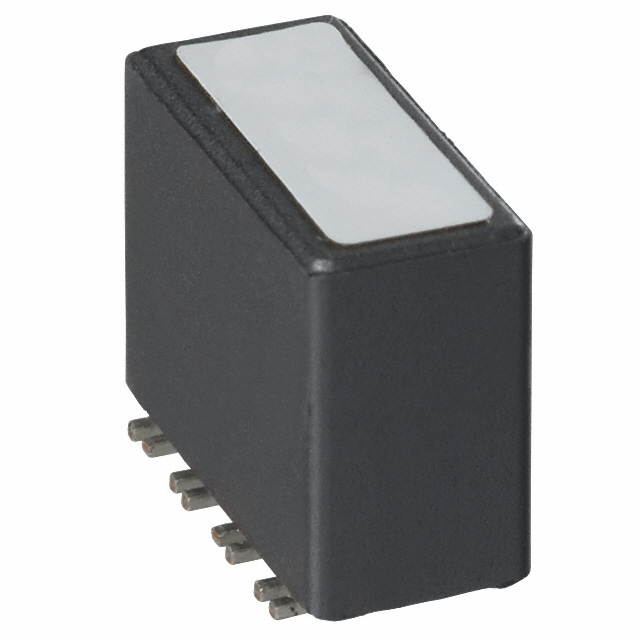

The CM5022R201R-10 is an eight-line common mode choke manufactured by Laird-Signal Integrity Products. It features a surface mount design with vertical orientation and sixteen flat leads. The component provides an impedance of 200 Ohms at 100 MHz and supports a maximum rated current of 5 Amperes. Its maximum DC resistance is 20 milliohms. The device operates within a temperature range of -55°C to 125°C. Physical dimensions are 12.57mm in length, 6.73mm in width, and a maximum height of 5.00mm.
Feature Summary
- Eight independent signal lines integrated into a single compact surface mount package for efficient board space utilization.
- Vertical lead configuration facilitates automated assembly and secure PCB mounting.
- High current handling capability ensures stable performance under significant load conditions.
Applications
- Power line filtering in multi-channel electronic systems
- Signal integrity management for high-density data interfaces
- Electromagnetic interference suppression in industrial equipment
Procurement Notes
Verify the specific suffix designation during procurement to ensure compliance with environmental regulations and material composition requirements. Confirm that the selected variant matches the required impedance and current ratings for the target application. Cross-reference the manufacturer part number with official datasheets to validate physical dimensions and terminal configurations before integration.
Selection Notes
Select this component when designing circuits requiring simultaneous filtering for eight distinct lines within constrained spatial limits. Evaluate the thermal environment to ensure operation remains within the specified -55°C to 125°C range. Consider the vertical profile and lead pitch compatibility with the printed circuit board layout and assembly processes.
Part Context
This component belongs to the CM series of common mode chokes from Laird-Signal Integrity Products. The series offers various line counts and impedance values tailored for different signal integrity needs. The CM5022R201R-10 specifically addresses applications demanding high channel density and robust electromagnetic interference mitigation in power and signal pathways.
Replacement Considerations
Direct replacement options include variants with adjusted impedance or current ratings within the same product family. Verify pin compatibility and mechanical footprint alignment when substituting components to maintain assembly integrity and electrical performance standards.
FAQ
What is the impedance value of the CM5022R201R-10 at 100 MHz?
The impedance is 200 Ohms at a frequency of 100 MHz.
How many signal lines does this common mode choke support?
It supports eight independent signal lines.
What is the maximum DC resistance of the component?
The maximum DC resistance is 20 milliohms.
