Product Detailed Parameters
- Description：CMC 75A 2LN 100 OHM TH
- Series：CM
- Mfr：Laird-Signal Integrity Products
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：75A
- DC Resistance (DCR) (Max)：-
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.540" L x 0.410" W (13.72mm x 10.41mm)
- Height (Max)：0.414" (10.52mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：-
- Impedance @ Frequency：100 Ohms @ 100 MHz
- Qualification：-
- Grade：-
Download product information
Overview

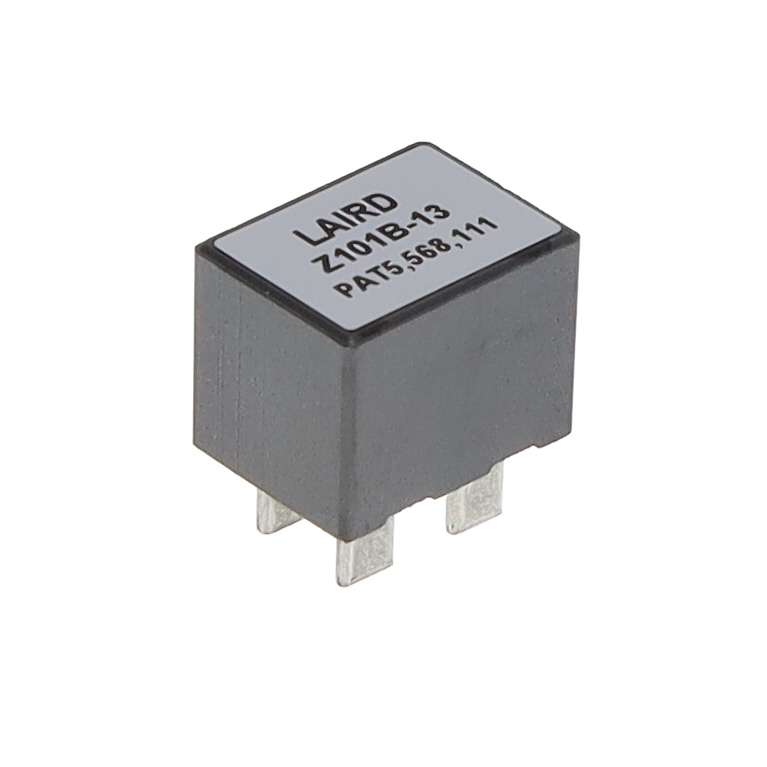

The CM5441Z101B-13 is a two-line common mode choke manufactured by Laird-Signal Integrity Products. It features a radial through-hole mounting style and operates within a temperature range of -40°C to +125°C. The component exhibits an impedance of 100 Ohms at 100 MHz and supports a maximum DC current of 75 A. Its maximum DC resistance is specified as 300 uOhms (0.0003 Ohms), with physical dimensions of 13.72 mm in length, 10.41 mm in width, and 10.52 mm in height.
Feature Summary
- Provides common mode noise suppression for dual-line circuits
- Supports high current handling up to 75 Amperes
- Designed for printed circuit board mounting via radial leads
Applications
- Power line EMI filtering
- Signal line noise suppression
- Electromagnetic interference shielding applications
Procurement Notes
Verify the manufacturer designation, as some listings reference Qnity while official documentation cites Laird-Signal Integrity Products. Confirm the specific impedance value of 100 Ohms at 100 MHz and the 75 A current rating against the official datasheet. Ensure the package type matches the required radial through-hole configuration for your PCB layout.
Selection Notes
Select this component when high current capacity is required alongside effective common mode noise reduction. The low DC resistance minimizes power loss in high-current paths. Verify that the physical footprint fits the available board space and that the operating temperature range meets environmental requirements.
Part Context
This part belongs to the CM series of common mode chokes from Laird-Signal Integrity Products. It is categorized under inductors, chokes, and coils. The product is unshielded and designed for general EMI filtering purposes in electronic systems requiring robust noise suppression capabilities.
Replacement Considerations
The CM5441Z101B-10 is a documented substitute within the same series, sharing identical electrical specifications including 100 Ohm impedance and 75 A current rating.
