CM5740Z171R-10

$2.81

Description：CMC 20A 4LN 170 OHM SMD
Series：CM
Mfr：Laird-Signal Integrity Products
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:8ea31732fa2a Category: Common Mode Chokes Brand: Laird-Signal Integrity Products

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 20A 4LN 170 OHM SMD
Series：CM
Mfr：Laird-Signal Integrity Products
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Power Line
Number of Lines：4
Current Rating (Max)：20A
DC Resistance (DCR) (Max)：1mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.570" L x 0.435" W (14.48mm x 11.05mm)
Height (Max)：0.413" (10.49mm)
Package / Case：Vertical, 8 Flat Lead
Inductance @ Frequency：-
Impedance @ Frequency：170 Ohms @ 100 MHz
Qualification：-
Grade：-

Download product information

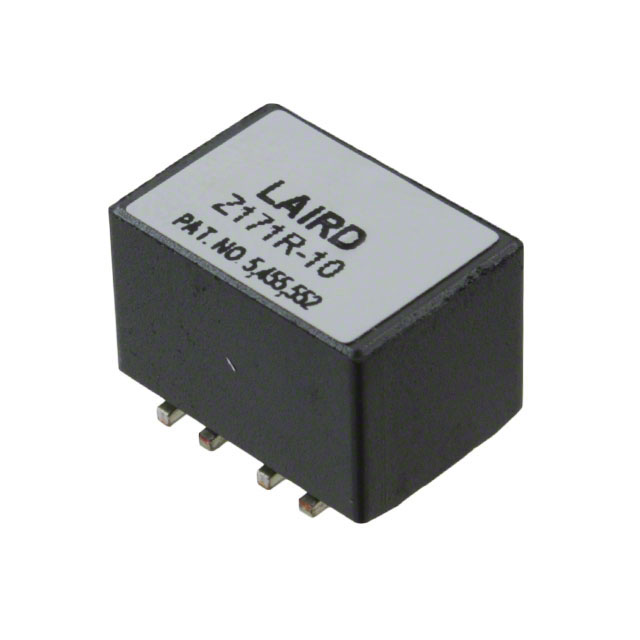

CM5740Z171R-10

Overview

The CM5740Z171R-10 is a surface-mount common mode choke manufactured by Laird-Signal Integrity Products. It features four lines and provides an impedance of 170 Ohms at 100 MHz. The component supports a maximum current rating of 20A with a maximum DC resistance of 1mOhm. It operates within a temperature range of -40°C to 125°C.

Feature Summary

Provides common mode noise suppression for multi-line signal paths
Designed for high-current applications up to 20A
Surface mount construction for automated assembly

Applications

High-speed data interface filtering
Power line noise suppression in industrial equipment
Signal integrity management in telecommunications hardware

Procurement Notes

Verify the specific package dimensions and pin configuration against the official datasheet before integration. Confirm that the 20A current rating aligns with the thermal management capabilities of the target PCB layout. Ensure compatibility with reflow soldering profiles specified by the manufacturer.

Selection Notes

Select this component when designing circuits requiring simultaneous filtering for multiple differential pairs or quad-lines. The low DC resistance minimizes power loss, while the high current handling capability suits robust power delivery networks. Evaluate the 170 Ohm impedance profile against the target noise frequencies.

Part Context

This part belongs to the CM series of EMI filters from Laird-Signal Integrity Products. It is categorized under common mode chokes intended for electromagnetic interference shielding and signal integrity enhancement. The product is designed to meet RoHS3 compliance standards for modern electronic manufacturing.
