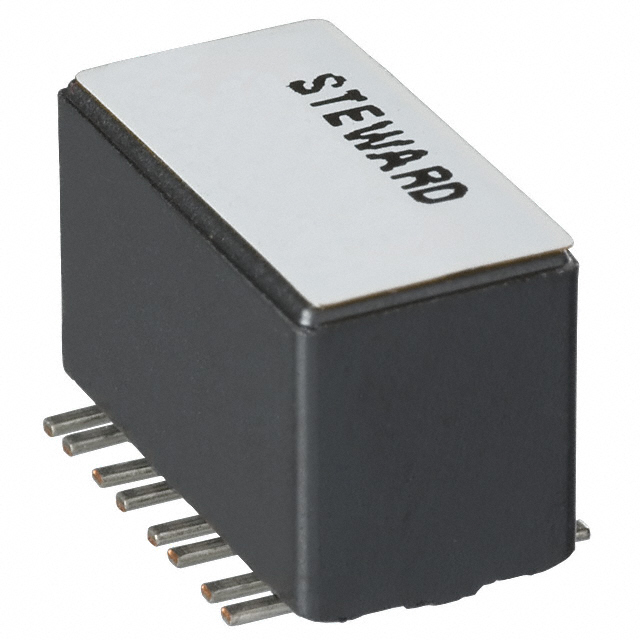

CM6032V201R-00

$1.18

Description：CMC 8A 8LN 200 OHM SMD
Series：CM
Mfr：Laird-Signal Integrity Products
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:70899558fdf3 Category: Common Mode Chokes Brand: Laird-Signal Integrity Products

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 8A 8LN 200 OHM SMD
Series：CM
Mfr：Laird-Signal Integrity Products
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Power, Signal Line
Number of Lines：8
Current Rating (Max)：8A
DC Resistance (DCR) (Max)：10mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-55°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.600" L x 0.320" W (15.24mm x 8.13mm)
Height (Max)：0.382" (9.70mm)
Package / Case：Vertical, 16 Flat Lead
Inductance @ Frequency：-
Impedance @ Frequency：200 Ohms @ 100 MHz
Qualification：-
Grade：-

Download product information

CM6032V201R-00

Overview

The CM6032V201R-00 is a discontinued common mode choke manufactured by Laird-Signal Integrity Products. It features six lines and is designed for surface mount installation with vertical, 16 flat lead packaging. The component provides an impedance of 200 Ohms at 100 MHz and supports a maximum rated current of 8A. Its DC resistance is specified at 10 milliohms. The device operates within a temperature range of -55°C to 125°C and measures 15.24mm in length, 7.62mm in width, and 9.70mm in height.

Feature Summary

Six-line configuration for multi-channel signal filtering
High current handling capability suitable for power applications
Surface mount design with vertical lead orientation

Applications

Power line noise suppression
Signal line EMI filtering
Multi-conductor cable protection

Procurement Notes

This part number is officially obsolete and no longer manufactured. Verification of availability should focus on the direct replacement CM4732V201R-10 or similar variants from the same manufacturer series. Confirm RoHS compliance status as the original model lacks this specification. Ensure mechanical footprint compatibility during sourcing.

Selection Notes

Designers requiring this specific electrical profile must evaluate the CM4732V201R-10 as the primary alternative. Verify that the replacement maintains identical pin counts and physical dimensions for PCB integration. Check updated environmental certifications if regulatory compliance is mandatory for the final assembly.

Part Context

This component belongs to the CM series of common mode chokes from Laird-Signal Integrity Products. These devices are engineered for suppressing electromagnetic interference in high-current environments. The CM6032V201R-00 specifically addresses multi-line requirements where space efficiency and high saturation current are critical design constraints.
