CM6032V301R-00

Overview

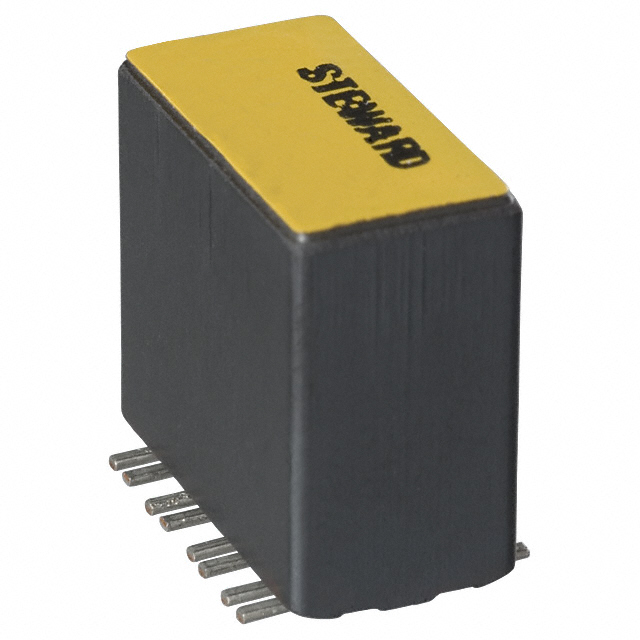

The CM6032V301R-00 is a surface-mount common mode choke manufactured by Laird-Signal Integrity Products. It features an eight-line configuration designed for power and signal line filtering. The component exhibits a DC resistance of 10 milliohms and supports a rated current of 8 amperes. Impedance is specified at 300 ohms measured at 100 MHz. Physical dimensions are 6.0mm in length, 3.2mm in width, and 3.2mm in height. The device utilizes vertical flat leads for PCB mounting.

Feature Summary

• Eight-line common mode choke array architecture
• Surface mount installation with vertical flat leads
• Designed for high DC current handling capabilities

Applications

• Power supply line filtering
• Low-frequency signal line protection
• High-frequency signal line noise suppression

Procurement Notes

Verify component status as the part is listed as obsolete or end-of-life. Confirm availability through authorized distributors or secondary markets. Ensure replacement components match electrical specifications including impedance, current rating, and physical footprint to maintain circuit integrity during procurement.

Selection Notes

Select this component for applications requiring multi-line common mode noise reduction in compact spaces. Evaluate thermal performance under continuous 8A load conditions. Verify compatibility with automated surface mount assembly processes due to the specific lead configuration and package dimensions.

Part Context

This component belongs to the Laird CM series of common mode chokes. These devices are engineered for electromagnetic interference suppression in electronic circuits. The series offers various line counts and current ratings to suit different board space and filtering requirements.

Replacement Considerations

CM6032V301R-10 is a confirmed direct substitute.
