CM6050M101R-10

Overview

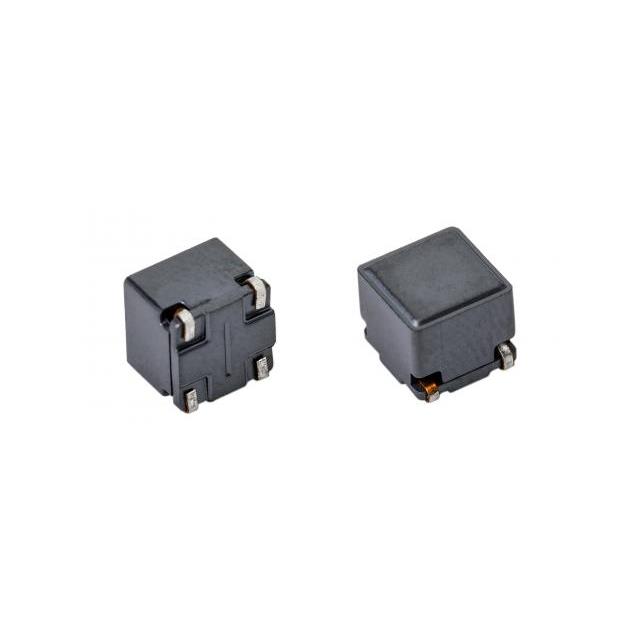

The CM6050M101R-10 is a single-channel common mode choke manufactured by Laird-Signal Integrity Products. It features an unshielded design with surface mount (SMD/SMT) termination for PCB mounting. The component operates within a temperature range of -55°C to +150°C and has physical dimensions of 5 mm in length and 5 mm in width. Key electrical specifications include an impedance of 100 Ohms, a maximum DC current rating of 5.6 A, and a maximum DC resistance of 5.2 mOhms.

Feature Summary

• Provides common mode noise filtering for power and signal lines
• Supports high operating temperatures up to +150°C
• Utilizes a compact 5x5 mm surface mount footprint

Applications

• Power line EMI suppression
• Signal line noise filtering
• General purpose electromagnetic interference mitigation

Procurement Notes

Verify the manufacturer designation carefully, as some distributor listings may incorrectly identify Qnity as the manufacturer instead of Laird-Signal Integrity Products. Confirm RoHS compliance status through official documentation, as availability varies across sources. Ensure the specific suffix matches the required impedance and current ratings for your circuit design.

Selection Notes

Select this component when a robust common mode choke capable of handling 5.6 A is required. The wide operating temperature range makes it suitable for demanding environments. Verify that the 100 Ohm impedance at the target frequency aligns with the specific noise spectrum requiring attenuation in the application.

Part Context

This part belongs to the CM6050 series of miniature broadband power line chokes from Laird-Signal Integrity Products. The series offers various impedance and current ratings tailored for different EMI filtering requirements while maintaining a consistent small form factor for space-constrained PCB layouts.

Replacement Considerations

CM4732V201R-10 is listed as a direct substitute option.
