Product Detailed Parameters
- Description：CMC 450UH 6.5A 2LN SMD
- Series：CM6296R
- Mfr：Delevan
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：6.5A
- DC Resistance (DCR) (Max)：24mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-55°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：1.058" L x 1.058" W (26.87mm x 26.87mm)
- Height (Max)：0.423" (10.74mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：450 µH @ 1 kHz
- Impedance @ Frequency：-
Download product information
Overview

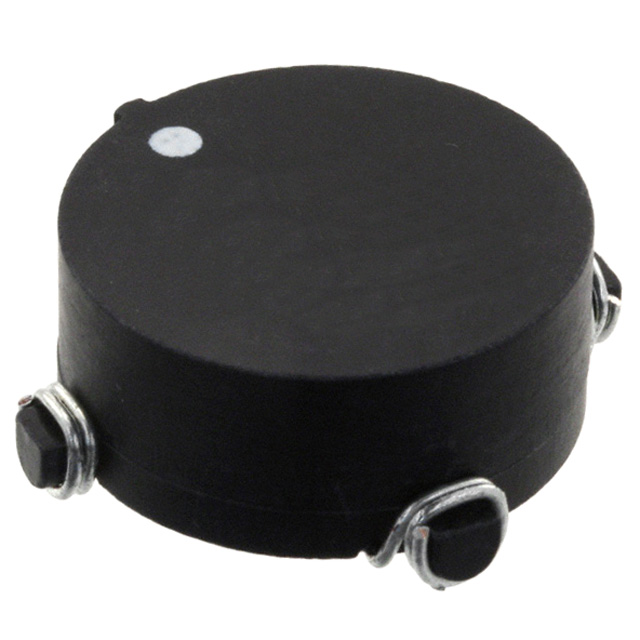

The Delevan CM6296R-454 is a surface-mount common mode choke designed for signal line isolation. It features an inductance of 450 µH with a tolerance of ±25% and a maximum DC resistance of 12 mΩ. The component supports a maximum DC current of 13 A and operates within a temperature range of -55°C to +125°C. Its physical dimensions are 26.87 mm in length, 26.87 mm in width, and 10.74 mm in height. The device is unshielded and classified as moisture sensitive.
Feature Summary
- Provides common mode noise suppression for differential signal lines
- Supports high current handling capabilities for power integrity
- Designed for direct surface-mount PCB integration
Applications
- High-speed data interface protection
- Signal line isolation in electronic equipment
- Common mode noise filtering in industrial systems
Procurement Notes
Verify the specific suffix and packaging configuration during ordering, as bulk quantities may vary by distributor. Confirm moisture sensitivity level (MSL) requirements and reflow soldering profiles prior to assembly to ensure component reliability. Cross-reference the manufacturer part number with official datasheets to validate electrical parameters against design specifications.
Selection Notes
Select this component when a 450 µH inductance value is required for common mode rejection. Ensure the 13 A current rating meets the circuit's operational demands. Verify that the SMD package dimensions fit the available PCB footprint. Consider the unshielded nature of the device regarding potential electromagnetic interference interactions with nearby components.
Part Context
This component belongs to the CM6296R series of common mode chokes manufactured by API Delevan. The series offers various inductance values tailored for different filtering needs. These devices are categorized under inductors, chokes, and coils, specifically functioning as isolation transformers or filters for single-channel applications.
Replacement Considerations
Check for other CM6296R variants with different inductance ratings if electrical performance differs from requirements. Verify pin compatibility and mechanical dimensions before substituting with generic common mode chokes.
