CM6317

Overview

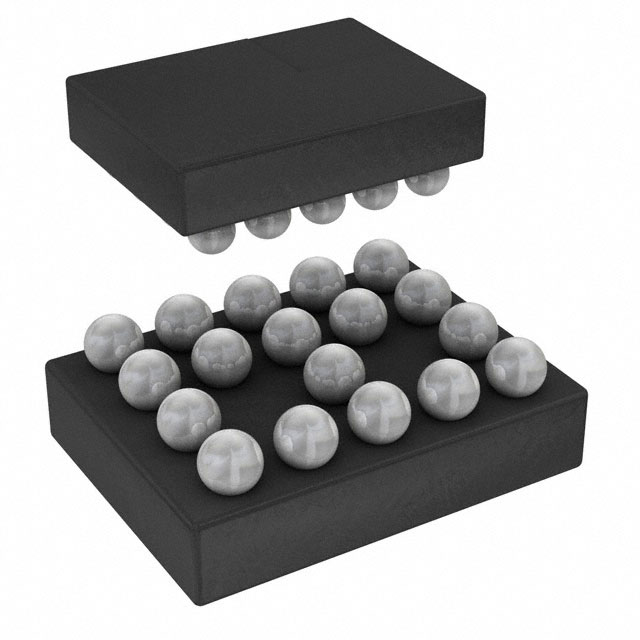

The CM6317 is a data line filter manufactured by onsemi, designed for signal integrity protection. It utilizes an RC Pi topology to provide low-pass filtering characteristics. The device features a resistance value of 70 Ohms and a capacitance of 30pF. It is housed in an 18-pin package with a height of 0.025 inches (0.64mm). This component supports seven functions within its design architecture.

Feature Summary

• Provides low-pass filtering for data lines using RC Pi technology
• Integrates multiple filtering functions within a single compact package
• Designed for signal integrity enhancement in high-speed applications

Applications

• Data line protection circuits
• Signal filtering in electronic systems
• EMI/RFI suppression networks

Procurement Notes

Verify the current manufacturing status before procurement as this part may be obsolete or discontinued. Confirm package dimensions and pin configuration against specific board layout requirements. Check for RoHS compliance documentation if required for your region. Ensure alternative sources are identified due to potential supply constraints associated with end-of-life components.

Selection Notes

Select this component when an integrated RC Pi filter solution is required for data lines. Consider the 70 Ohm resistance and 30pF capacitance values for appropriate cutoff frequency calculations. Evaluate the 18-pin form factor against available PCB space. Verify compatibility with the target signal frequencies and voltage levels.

Part Context

The CM6317 belongs to the EMI/RFI filters category, specifically functioning as a data line filter. It represents onsemi's offering in passive filtering solutions for protecting sensitive digital interfaces from noise interference.

Replacement Considerations

This product is listed as no longer manufactured. Identify equivalent active parts from onsemi or other manufacturers that match the 70 Ohm/30pF RC Pi specifications and 18-pin package constraints.
