Product Detailed Parameters
- Description：CMC 1MH 950MA 2LN SMD
- Series：-
- Mfr：Mentech Technology USA Inc.
- Package：Tape & Reel (TR)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：950mA
- DC Resistance (DCR) (Max)：180mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.374" L x 0.350" W (9.50mm x 8.90mm)
- Height (Max)：0.220" (5.60mm)
- Package / Case：-
- Inductance @ Frequency：1 mH @ 100 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

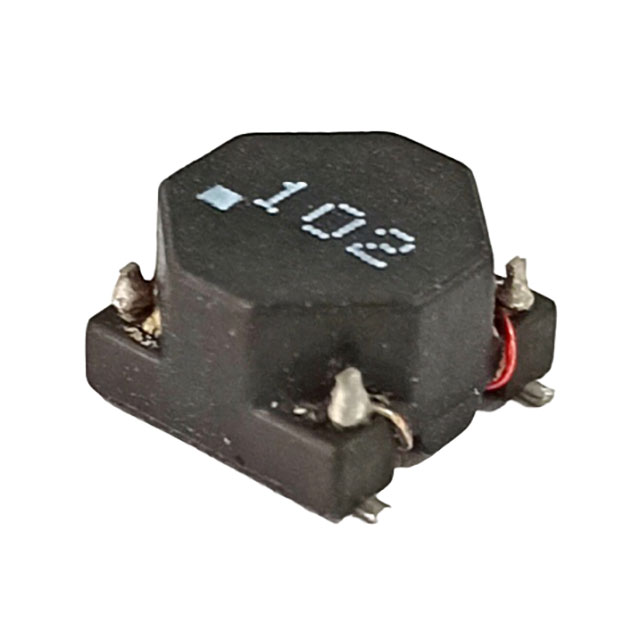

The CM633SG102N is a surface-mount common mode choke manufactured by Mentech Technology USA Inc. Designed for two-line signal applications, this component provides electromagnetic interference suppression in compact electronic assemblies. It features an inductance of 1 mH measured at a frequency of 100 kHz and supports a maximum current rating of 950 mA. The device exhibits a direct current resistance (DCR) of 180 mOhm, ensuring efficient power transmission with minimal voltage drop while effectively filtering high-frequency noise on data lines.
Feature Summary
- Surface mount construction for automated assembly integration
- Dual-line configuration for balanced signal line protection
- High inductance value for effective high-frequency noise attenuation
Applications
- Signal line filtering in consumer electronics
- Noise suppression in USB or data interface circuits
- Electromagnetic compatibility enhancement in compact devices
Procurement Notes
Verify the complete part number including suffixes to ensure correct packaging and tolerance specifications. Confirm that the operating temperature range and current ratings align with your specific circuit requirements before finalizing procurement decisions. Cross-reference manufacturer documentation for any recent updates to mechanical dimensions or material compliance standards.
Selection Notes
Select this component when space constraints require a surface-mount solution for dual-line noise filtering. Ensure the 950 mA current rating meets the peak load requirements of the application. Consider the 180 mOhm DCR impact on overall circuit efficiency and thermal management within the enclosure design.
Part Context
Mentech Technology USA Inc. specializes in magnetic components, offering research, development, and manufacturing services. The company operates as a high-tech enterprise providing ODM and JDM solutions. This product falls under their portfolio of electronic filters and common mode chokes designed for modern electronic systems.
Replacement Considerations
Consult official manufacturer substitution lists for verified equivalents. Ensure replacement parts match the 1 mH inductance, 950 mA current rating, and 180 mOhm DCR specifications. Verify package compatibility and pinout alignment if substituting with components from other manufacturers.
